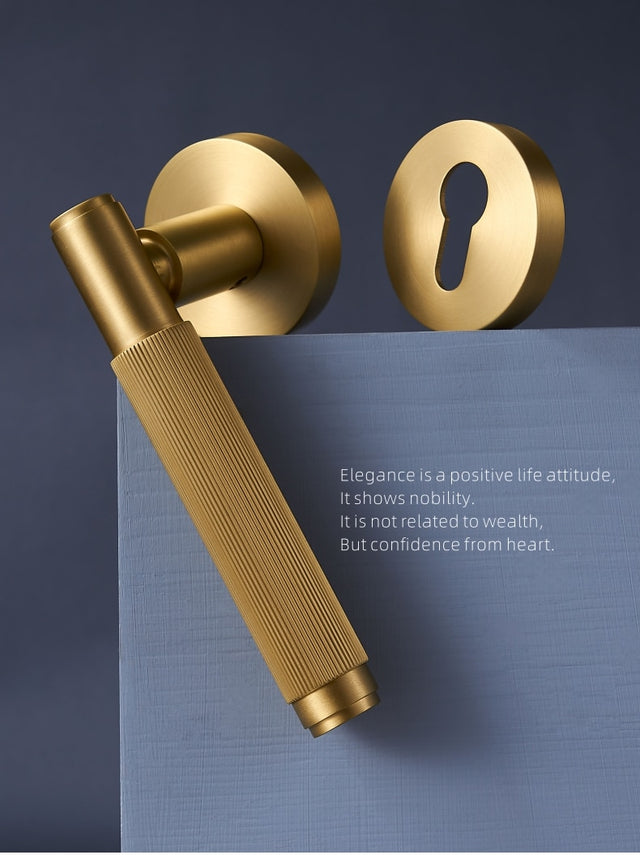

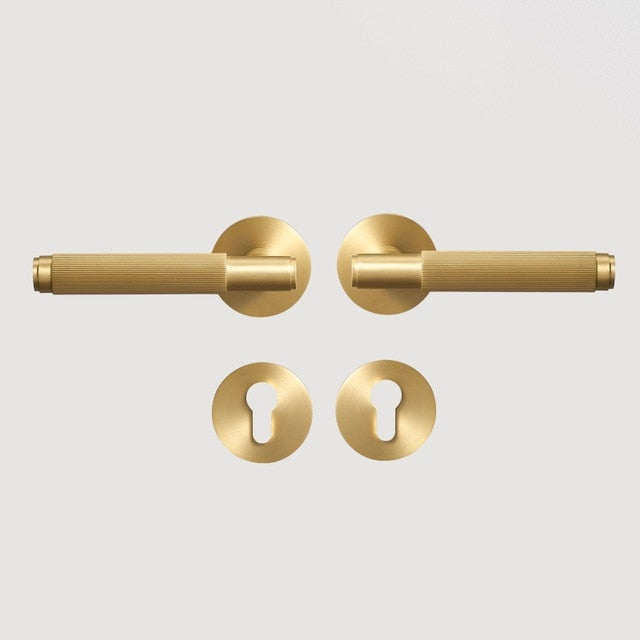

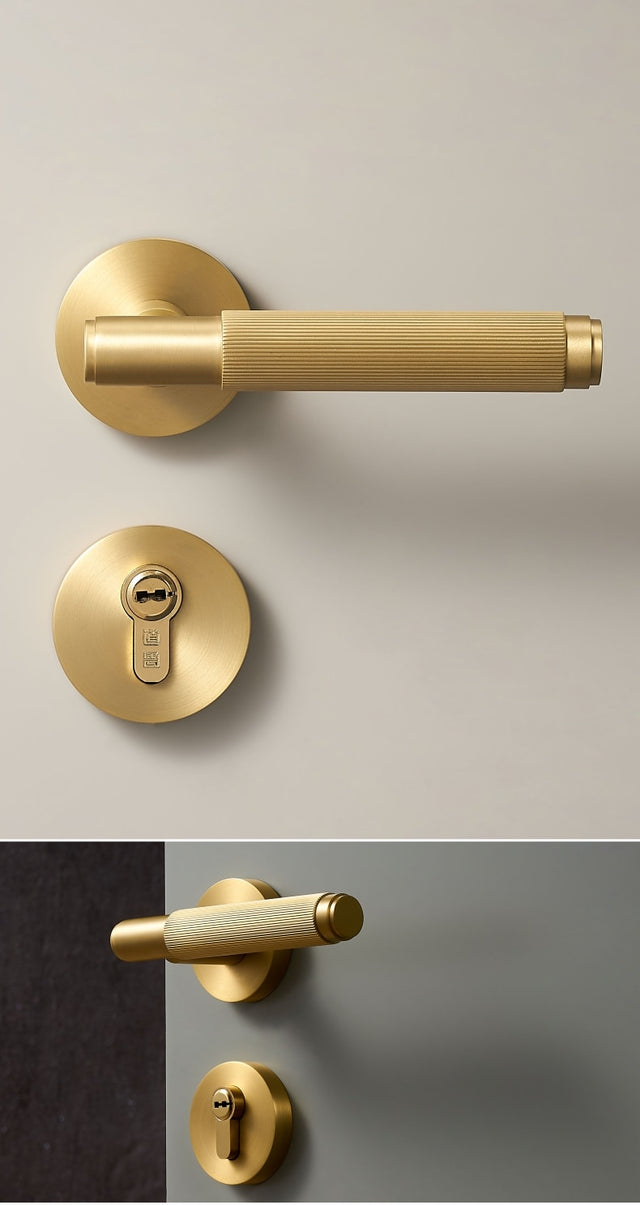

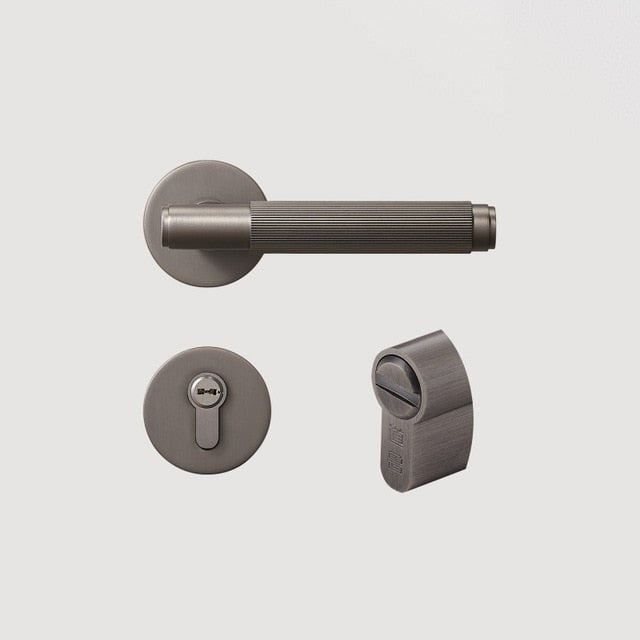

Modern Brass Door Lock Set

• Designed to complement both contemporary and traditional interior styles
• Available in multiple finish options to coordinate with your existing decor
• Elegant design adds a refined, cohesive look to doors and cabinetry
• Easy installation with standard mounting hardware included
• Built for frequent use with smooth, reliable operation every time

Contemporary Design: Elevates your decor with a sleek, modern aesthetic.

Premium Brass Material: Durable and long-lasting, offering superior strength.

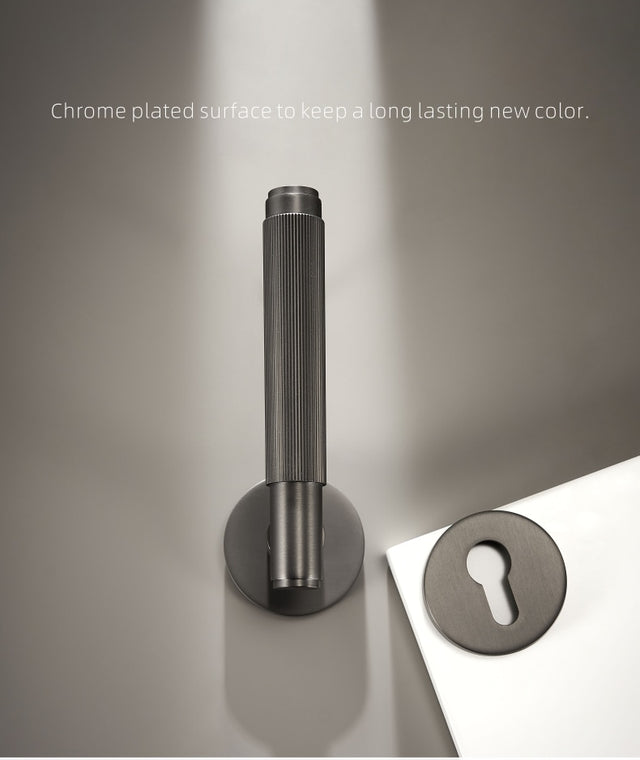

Electroplated Surface Finish: Provides a polished and elegant look while resisting wear.

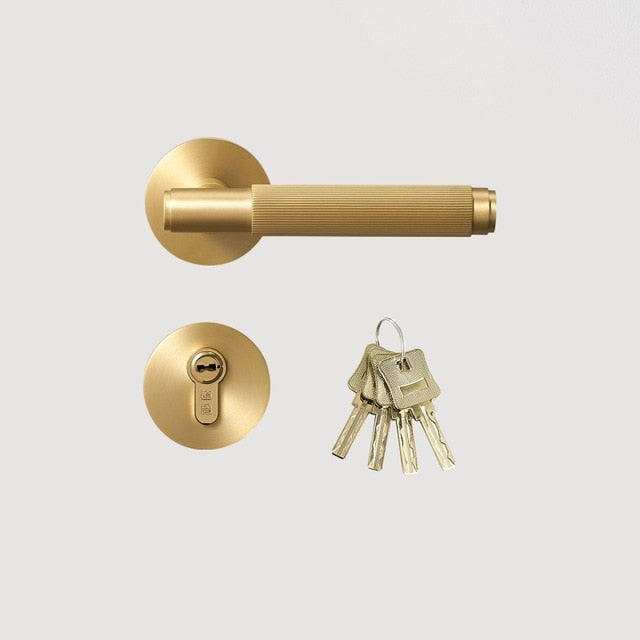

Keys Included: Ensures convenience and security for all users.

Versatile Applications: Suitable for rooms, kitchens, bars, dining areas, and restaurants.

Fits Standard Doors: Designed for door thickness between 35-50 mm.

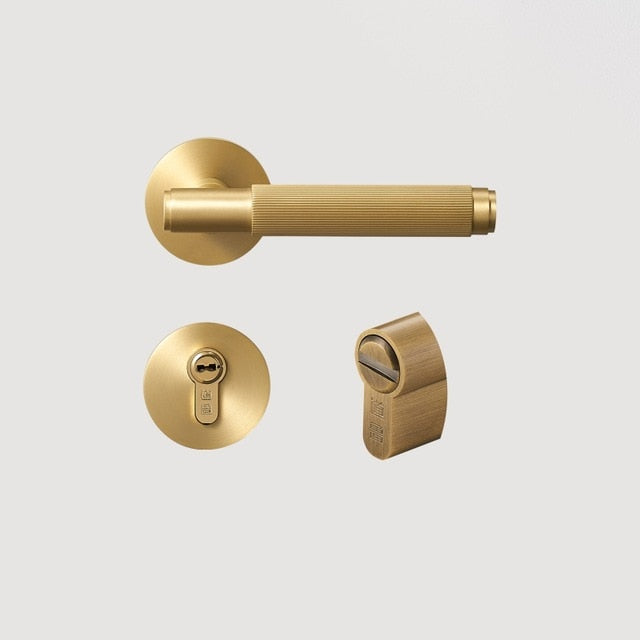

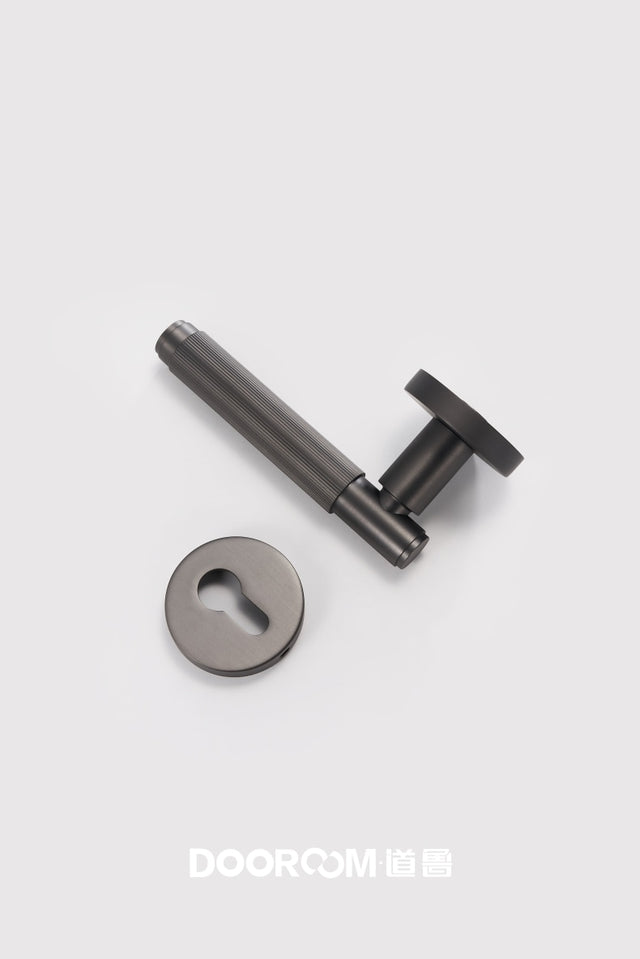

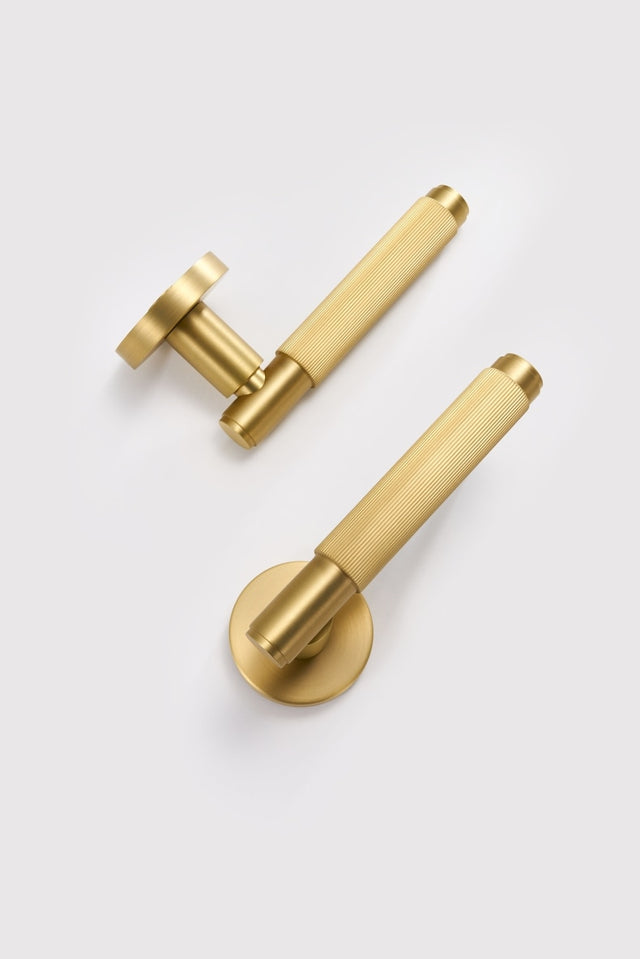

Color Options: Available in two sophisticated finishes - Gold and Grey.

Compatible with standard door thickness: 35-50 mm.

Overview

• Mounting Approach: All hardware in this collection mounts to the surface of doors, drawers, or cabinetry. Refer to your product's dimensions for precise placement and drilling locations.

What You Will Need

• Screwdriver (Phillips and flathead)
• Drill with assorted bits
• Allen key
• Tape measure and pencil
• Level
• Chisel (for mortise lock installations)
• Screws and anchors
• Protective eyewear

A. Cabinet Hardware (Pull Bars, Knobs, Drawer Pulls)

Step 1: Mark Your Drilling Points

Using a tape measure and pencil, mark the hole locations on the cabinet or drawer face. For consistent placement across multiple pieces, we recommend using a drilling template.

Step 2: Drill the Holes

Bore through the surface with a drill bit that matches the diameter of the included screws. Hold the drill perpendicular to the surface to avoid misaligned holes.

Step 3: Attach the Hardware

Thread the screws through the back of the cabinet or drawer and into the hardware on the front face. Snug the screws with a screwdriver - take care not to overtighten.

Step 4: Inspect the Alignment

Verify that every piece is straight and evenly spaced before you finish tightening.

B. Door Handle Hardware

B1: Thumb Lock or Dummy Handle

Step 1: Check the Door Orientation

Identify whether your door swings left or right. Adjust the handle direction accordingly.

Step 2: Mark the Mounting Height

Measure and mark your preferred handle height (standard placement is 36-38 inches from the floor to the center of the handle). Position the backing plate at that mark.

Step 3: Drill and Fasten

Drill pilot holes at the marked points and secure the backplate and handle with the included screws. Dummy handles install directly without any latch mechanism.

Step 4: Fit the Strike Plate (Thumb Lock Only)

Mark the latch contact point on the door frame. If necessary, chisel a shallow recess and screw the strike plate into position.

B2: Mortise Lock Handle

Step 1: Create the Mortise Pocket

Using a drill and chisel, carve a cavity into the door edge that matches the lock body dimensions. Follow the measurements provided with your hardware.

Step 2: Insert the Lock Body

Slide the lock mechanism into the mortise cavity and secure it with screws through the faceplate.

Step 3: Mount the Handles

Align the spindle through the lock body and attach handles on both sides. Tighten with a screwdriver or the included Allen key.

Step 4: Install the Cylinder (if applicable)

Insert the keyed cylinder into its designated slot. Fasten it with the cylinder screw accessible from the door edge.

Step 5: Secure the Strike Plate

Position the strike plate on the frame so it aligns with the latch. Screw it into place.

Helpful Reminders

• Measure twice before you drill - precision prevents mistakes.
• Use a level to keep handles aligned across multiple doors or drawers.
• If you are unfamiliar with mortise installation, consider hiring a locksmith or professional installer.
• Test all moving parts for smooth operation before fully tightening fasteners.
• Dummy handles are decorative or pull-only - they do not engage any latch or lock mechanism.
