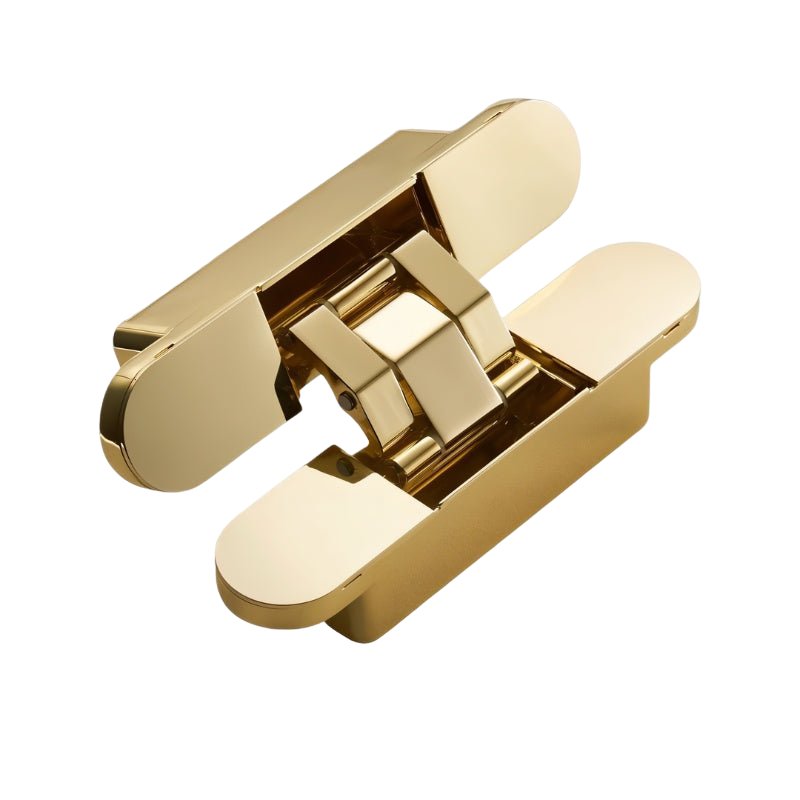

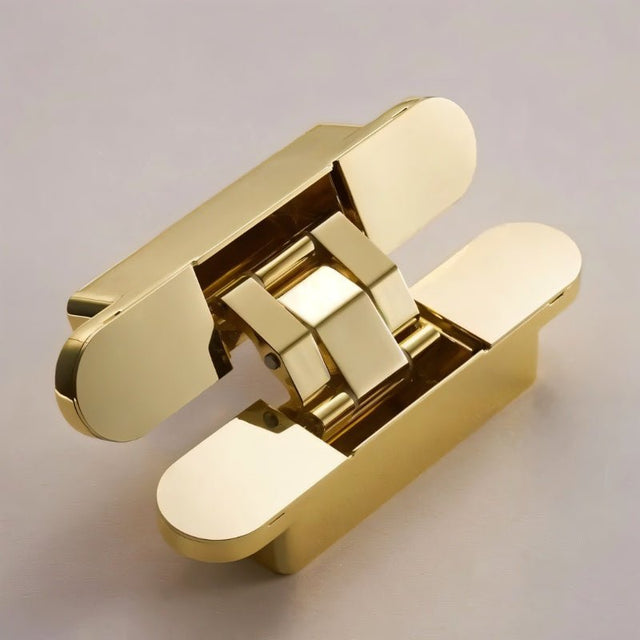

Tasiilaq Recessed Door Hinge

$190.00

Architectural brass concealed hinge delivers whisper-quiet operation with invisible integration — expertly crafted for modern door systems.

Invisible Integration

Hardware masked for architectural purity

Universal Compatibility

Adapts to diverse door configurations

Whisper Operation

Fluid motion with silent performance

Protect your investment

See All Benefits

1 Year Extended Warranty

Estimated arrival: , Order within

Why you'll love it
  • Premium construction ensures exceptional longevity
  • Invisible design elevates architectural sophistication
  • Streamlined installation maximizes convenience

Product Specifications

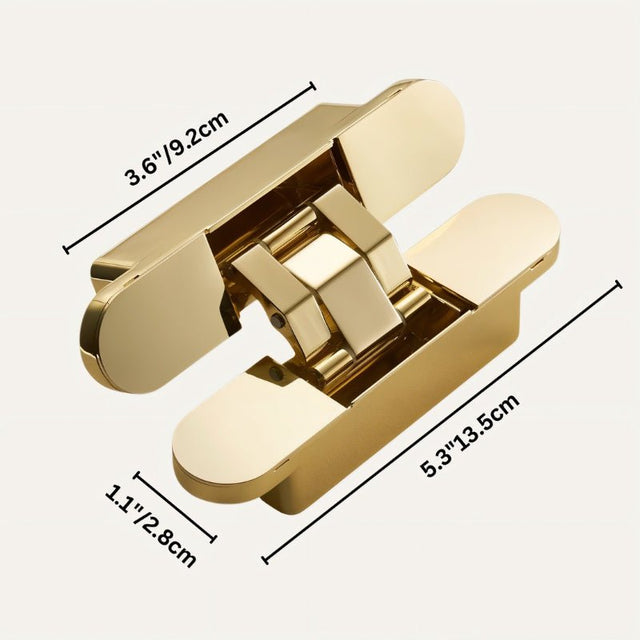

Dimensions: L1.1"(2.8cm) x H5.3"(13.5cm)

Material: Metal

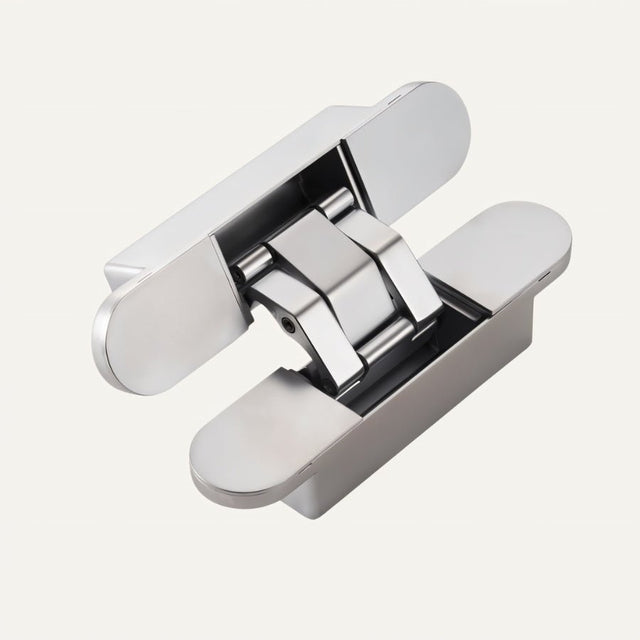

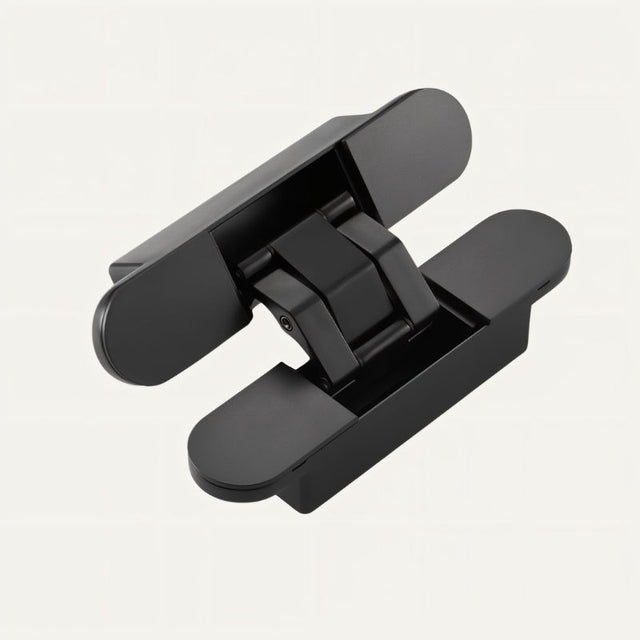

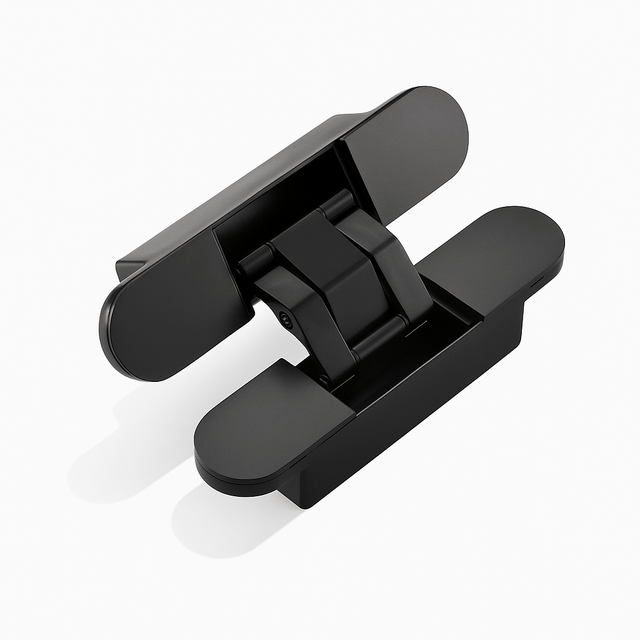

Finish: Brass, Black, Nickel

Weight Capacity: Up to 40 Kg

Pin Type: Non-removable Pin

Bearing Type: Plain Bearings

Installation: Concealed

Application: For Interior Use

Installation Guide
Overview
  • Mounting Configuration: Door hinges attach to the door edge and the corresponding door frame. The specific placement and technique depend on the hinge style.
What You Will Need
  • Screwdriver (Phillips or flathead)
  • Drill with assorted bits
  • Chisel (for mortising)
  • Screws
  • Tape measure and pencil
  • Level or square
  • Hammer and mallet
A. Mortise Hinges

Step 1: Mark the Hinge Positions

Measure and mark locations on the door edge. Standard placement:

  • Top hinge: 5–7 inches from the top of the door
  • Bottom hinge: 10–12 inches from the bottom
  • Third hinge (if used): centered between the top and bottom positions

Step 2: Cut the Mortise Recesses

Trace the hinge outline on the door edge and frame. Chisel shallow recesses so each hinge leaf sits flush with the surrounding surface.

Step 3: Pre-Drill the Screw Holes

Place the hinge into the mortise, mark the screw locations, and drill pilot holes.

Step 4: Attach the Hinges

Screw one leaf of each hinge to the door edge. Position the door in the frame and fasten the other leaf to the jamb.

Step 5: Test the Swing

Open and close the door to confirm smooth, unobstructed movement. Adjust screws if needed.

B. Concealed Hinges

Step 1: Mark and Cut the Recess

Mark the hinge positions on both the door edge and frame. Use a router or chisel to cut recesses deep enough to house the concealed hinge body.

Step 2: Position and Pre-Drill

Insert the hinge body into the recess, align it flush with the surface, and mark the screw holes. Drill pilot holes.

Step 3: Fasten the Hinges

Secure the hinge body into both the door and the frame using the provided screws. Confirm the hinge is fully seated for correct alignment.

Step 4: Fine-Tune the Alignment

Most concealed hinges have built-in adjustment screws. Use them to dial in the vertical and horizontal alignment.

Step 5: Test the Operation

Open and close the door through its full range to verify smooth, quiet movement without rubbing or binding.

Helpful Reminders
  • Measure and mark all hinge positions carefully before cutting or drilling.
  • Proper mortising ensures hinges sit flush and the door closes cleanly.
  • Use a level to verify vertical alignment.
  • Heavy doors benefit from three hinges for stable support.
  • Tighten screws periodically to maintain long-term performance.
Questions?

We are here to help with installation or compatibility inquiries.
Email: care@leveldecor.co

Make it your own

Every order is eligible for customization by our skilled in-house team.

Frequently Requested Modifications
  • Adjusted hanging or suspension length
  • Custom material finish or paint color
  • Modified light emission color or temperature
  • Dimmer integration
  • Scaled dimensions (larger or smaller)
  • Complete fixture redesign based on your specifications

Shipping Time & Returns

We are thrilled to offer shipping worldwide to over 120 countries, ensuring that wherever you are, we can deliver to your doorstep.

Standard Shipping:
Enjoy complimentary standard shipping on all orders! Expect delivery within 15-21 business days from the date of your order.

Priority Processing:
Need your items sooner? Opt for our Priority Processing option at checkout. With Priority Processing, we'll fast-track the manufacturing process of your lighting fixture. Your order will skip the line, resulting in shipping times of approximately 10-20 business days from the date of your order to delivery at your doorstep.

Return Policy:

We want you to love your purchase, which is why we offer a hassle-free return policy. If for any reason you're not completely satisfied with your order, you have 14 days from the date of receipt to initiate a return.

  • Please note that a 20% restocking fee will be applied to any merchandise returned or exchanged that is not due to manufacturer defects or damage.
  • To request a refund or initiate a return, simply email our returns team at care@leveldecor.co. For more details, please review our complete Return Policy.

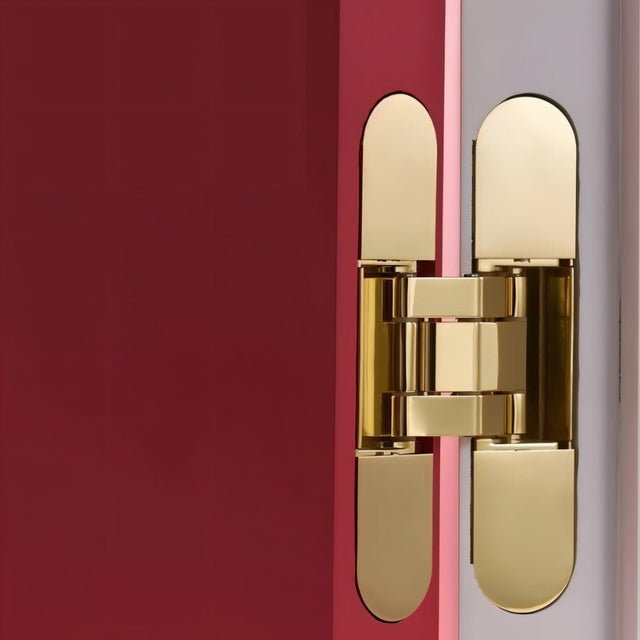

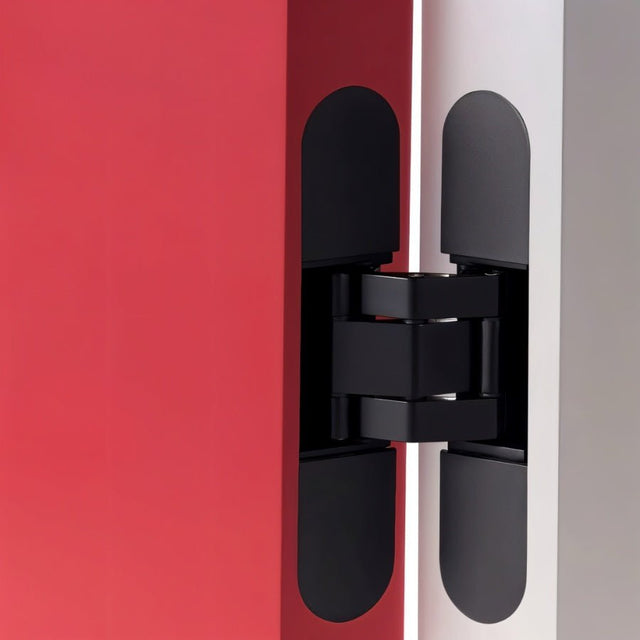

The Tasiilaq concealed hinge delivers architectural sophistication through its invisible integration. Featuring detachable finishing plates that mask hardware elements, this premium mechanism disappears completely when installed. Once positioned, doors close with refined precision while maintaining an absolutely streamlined profile.

FEATURES:

  • Masks hardware elements for architectural purity.
  • Engineered for flush, pivot, accordion, and swing applications.
  • Delivers whisper-quiet operation with fluid motion.
  • Versatile compatibility across diverse door configurations.

          DIMENSIONS:

          • 1.1" x 5.3" / 2.8 x 13.5 cm

          Frequently Asked Questions

          Does this hinge work with period home installations?

          Absolutely, the Tasiilaq concealed hinge accommodates diverse door configurations, including flush, pivot, accordion, and swing applications, making it perfectly suited for period home installations.

          What's involved in the setup process?

          The Tasiilaq installation process is engineered for simplicity and precision. Position the mechanism against your door and frame, then fasten using the included hardware. The detachable finishing plates provide easy access to adjustment points for perfect alignment. Anyone comfortable with standard home improvement tasks will find this installation remarkably straightforward.

          What premium materials comprise this hinge?

          The Tasiilaq features premium-grade construction materials selected for exceptional durability and refined performance. This concealed mechanism combines architectural elegance with structural integrity, delivering the reliability required across various door applications while maintaining its sophisticated aesthetic appeal.

          Does this mechanism ensure quiet door operation?

          Absolutely, the Tasiilaq is precisely engineered for whisper-quiet performance with fluid motion characteristics. Its advanced design prioritizes seamless, silent functionality, making it perfect for spaces requiring acoustic discretion. The mechanism's ability to mask hardware elements enhances its overall performance efficiency, delivering exceptional quiet operation across flush, pivot, accordion, and swing door applications where sound control is essential.

          Can this hinge accommodate different door configurations?

          Yes, the Tasiilaq offers exceptional versatility across multiple door configurations, making it an ideal choice for diverse architectural applications. It's specifically designed for flush, pivot, accordion, and swing door systems. This adaptability ensures seamless integration with various door styles, providing both superior functionality and aesthetic harmony across different design environments.

          Are the cover plates removable for access?

          Certainly! The Tasiilaq includes detachable finishing plates that expertly mask adjustment hardware, delivering architectural purity that integrates seamlessly with your interior design. This innovative feature makes the Tasiilaq an exceptional choice for achieving refined, sophisticated aesthetics in your space.

          How well does this integrate with interior design?

          Perfectly, the Tasiilaq achieves seamless integration through its invisible design approach, masking hardware elements with detachable finishing plates and disappearing completely when doors are closed, delivering refined architectural sophistication.

          What about durability under regular operation?

          The Tasiilaq is precisely engineered for whisper-quiet performance with fluid motion, making it exceptionally suited for continuous daily use.

          Can this mechanism work with various door styles?

          Yes, the Tasiilaq accommodates flush, pivot, accordion, and swing door applications with exceptional versatility.

          Will this provide a refined, streamlined appearance?

          Absolutely, the Tasiilaq delivers refined sophistication by masking hardware elements and disappearing completely when doors are positioned, creating an absolutely streamlined profile.
