Hermanville Track Light

$0.00

Engineer your own magnetic track lighting system with modular components, premium fixtures, and intelligent controls for sophisticated spaces.

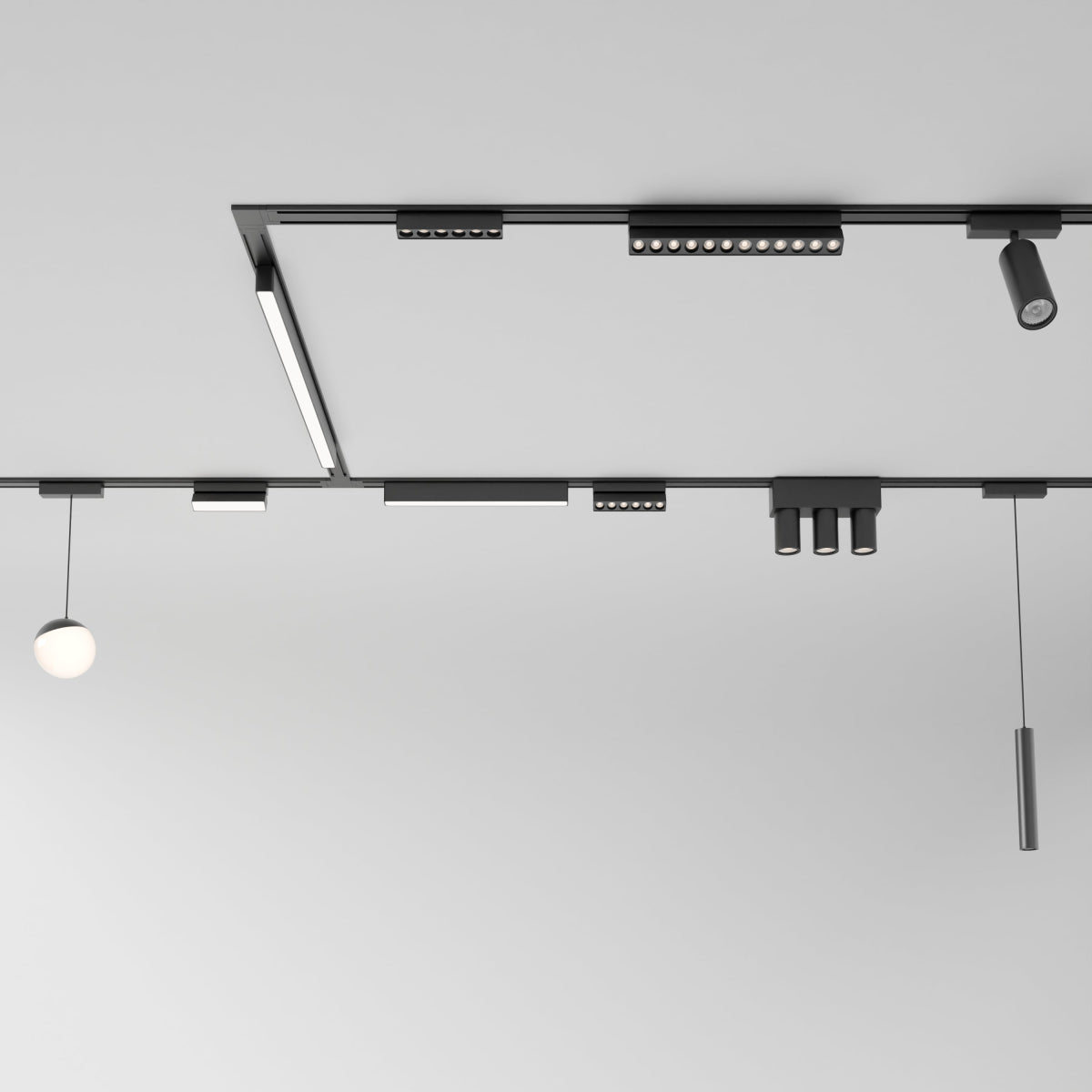

Architectural Modularity

Completely configurable and expandable

Premium Metal Construction

Elegant black or white

Intelligent Home Integration

Voice and app compatibility

Protect your investment

See All Benefits

1 Year Extended Warranty

Estimated arrival: , Order within

Why you'll love it
  • Magnetic attachment eliminates installation complexity
  • Variable color temperature creates perfect atmospheric control
  • Extended LED lifespan minimizes maintenance requirements

Product Specifications

Product Dimensions:

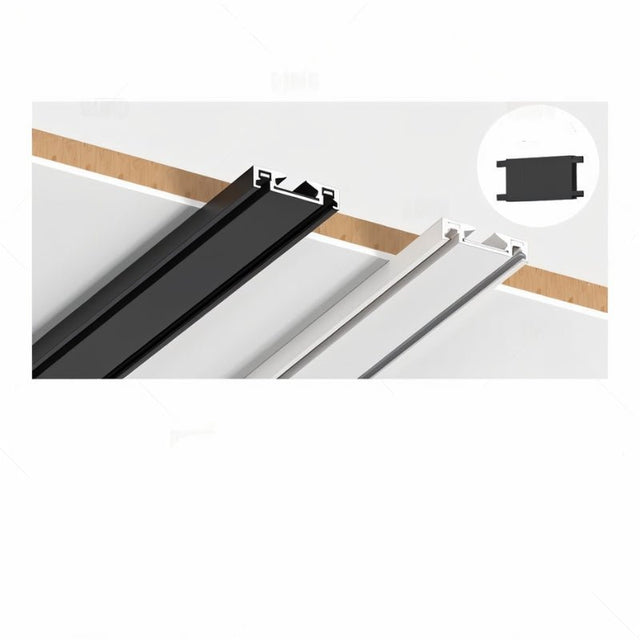

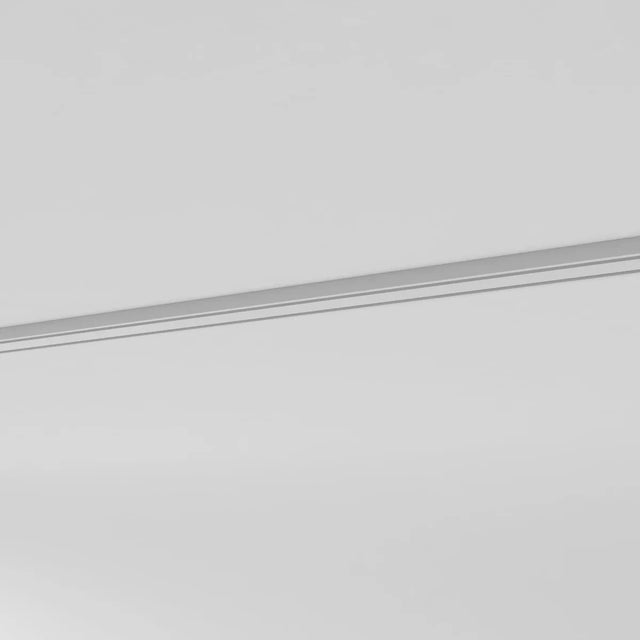

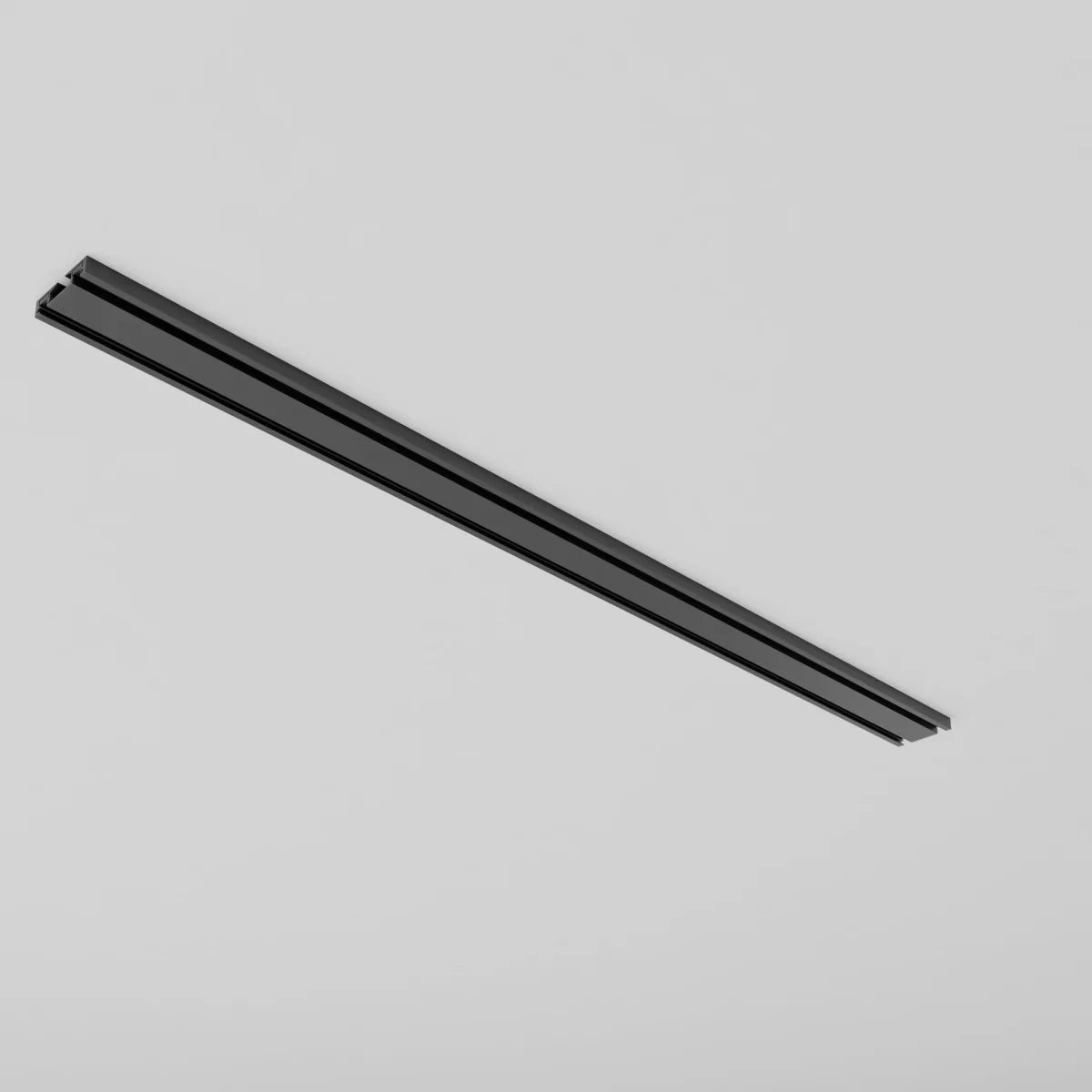

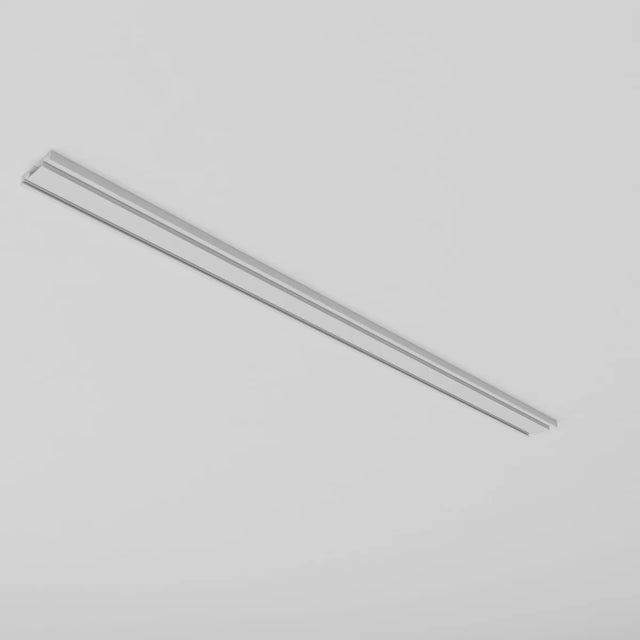

Magnetic Track Rail: 19.7"(50cm)

Ultrathin Track: 39.4"(100cm)

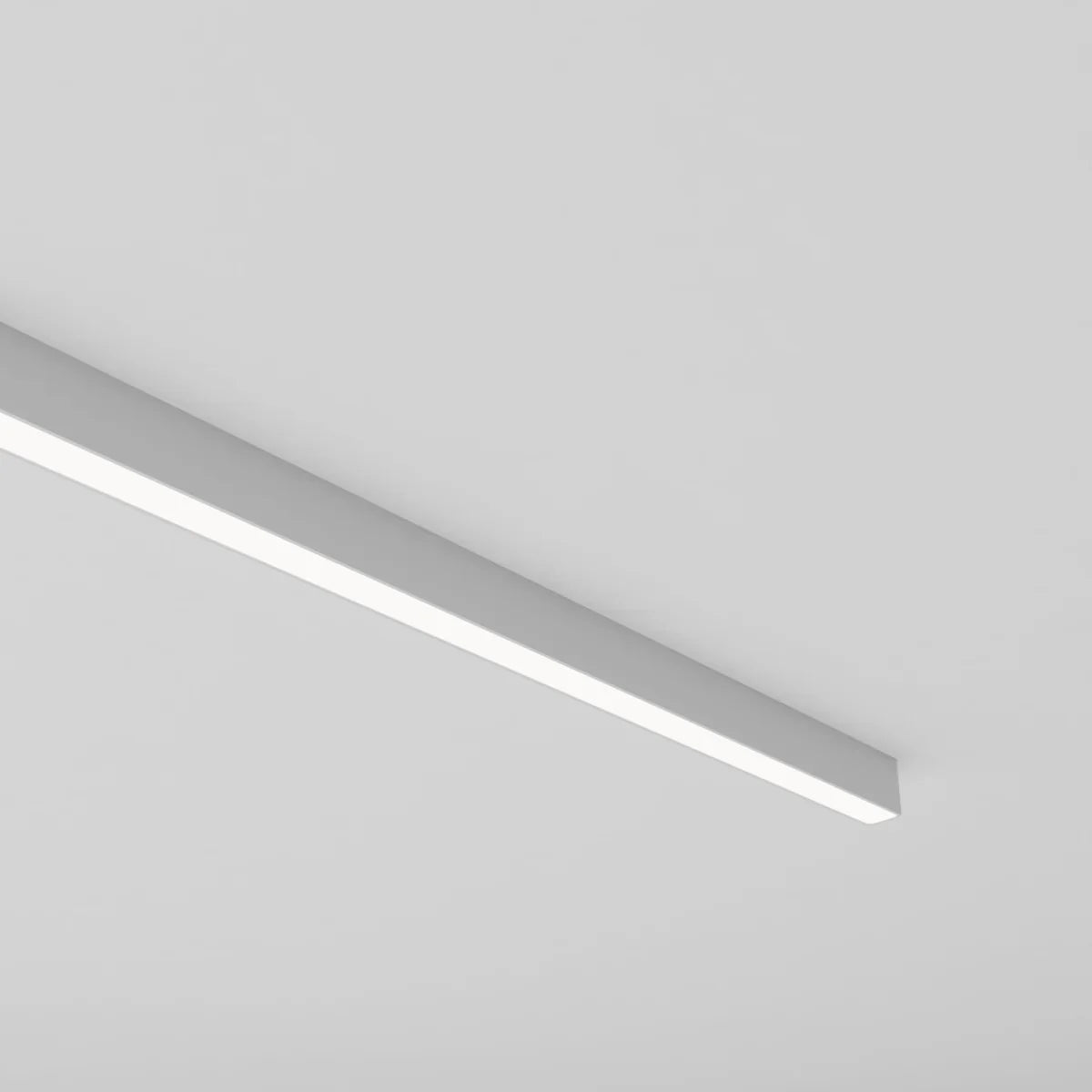

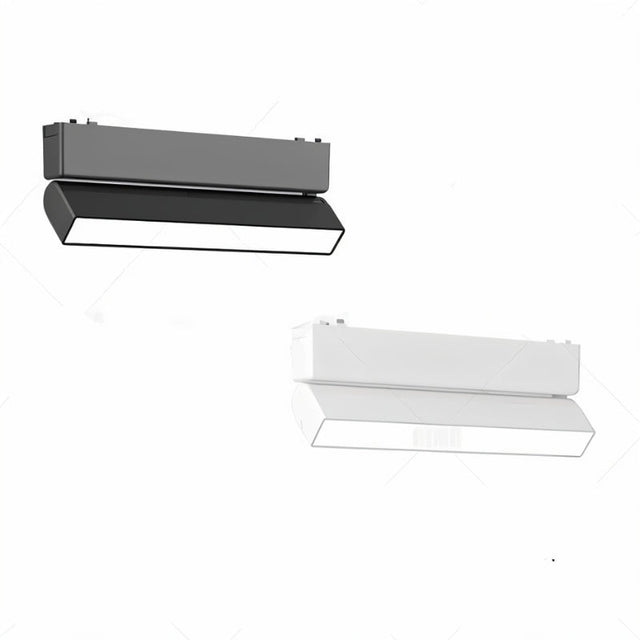

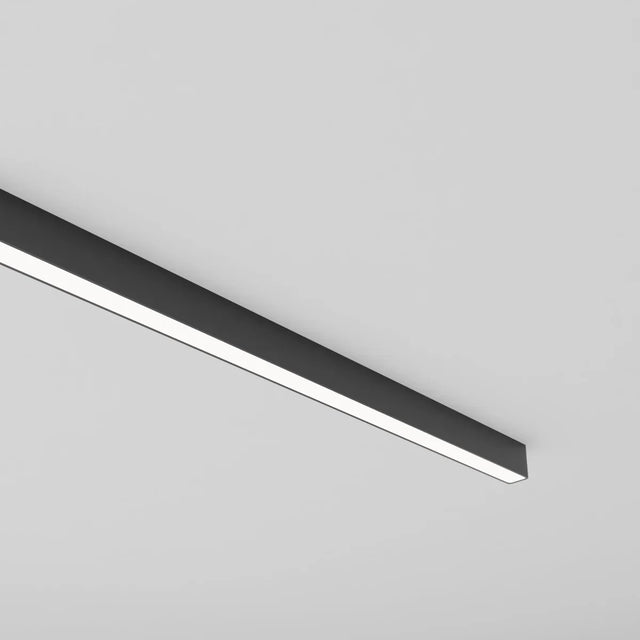

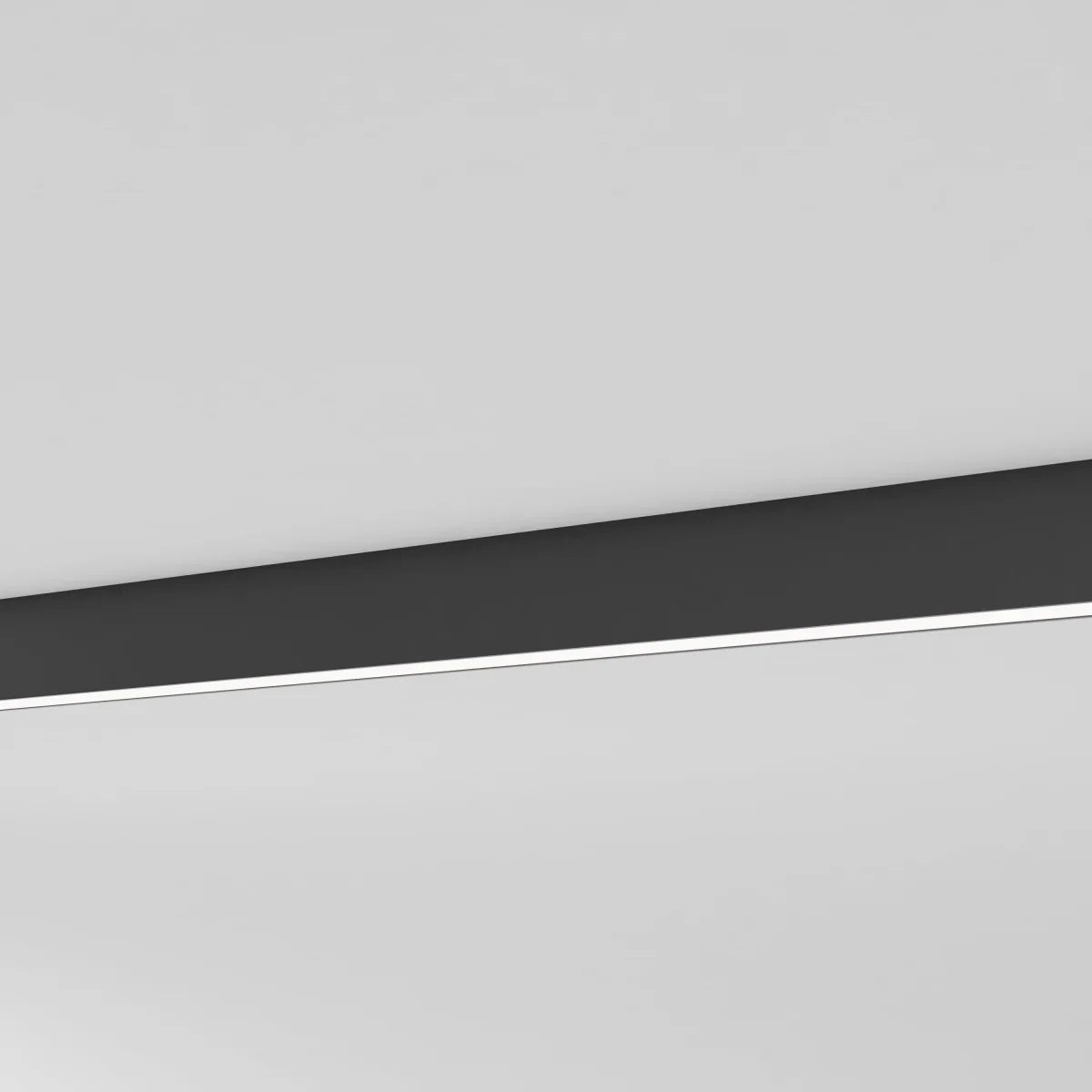

Floodlight A: 12.4"(31cm)

Floodlight A: 24.2"(61cm)

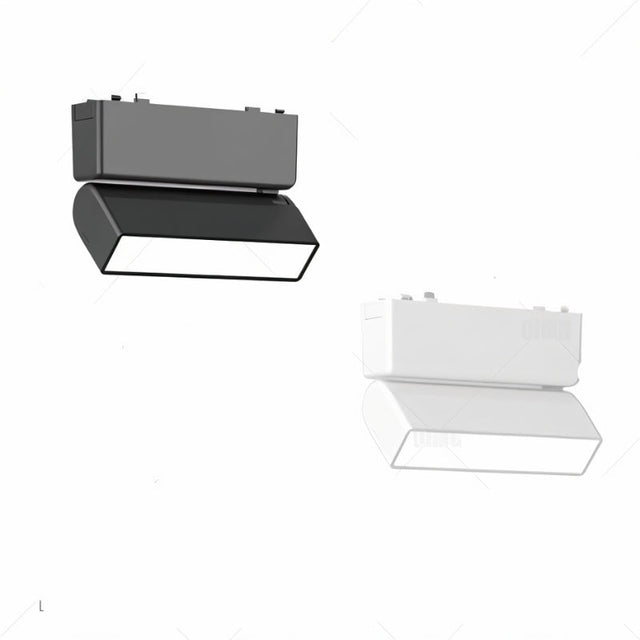

Floodlight B: 4.8"(12cm)

Floodlight B: 9.1"(23cm)

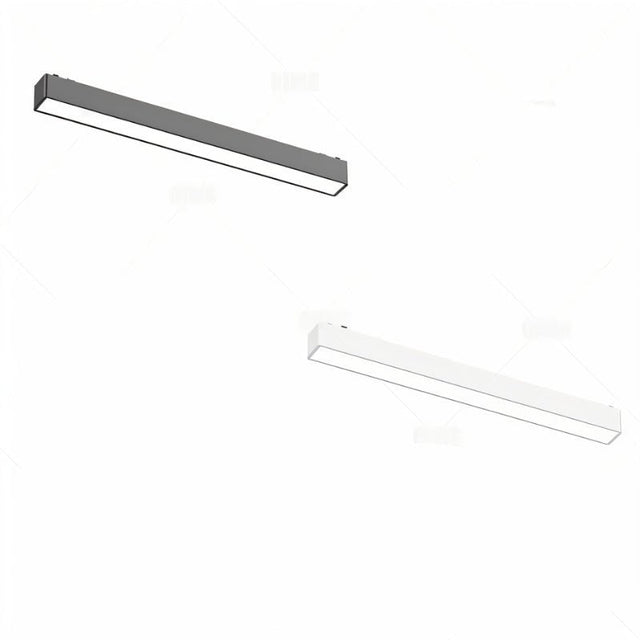

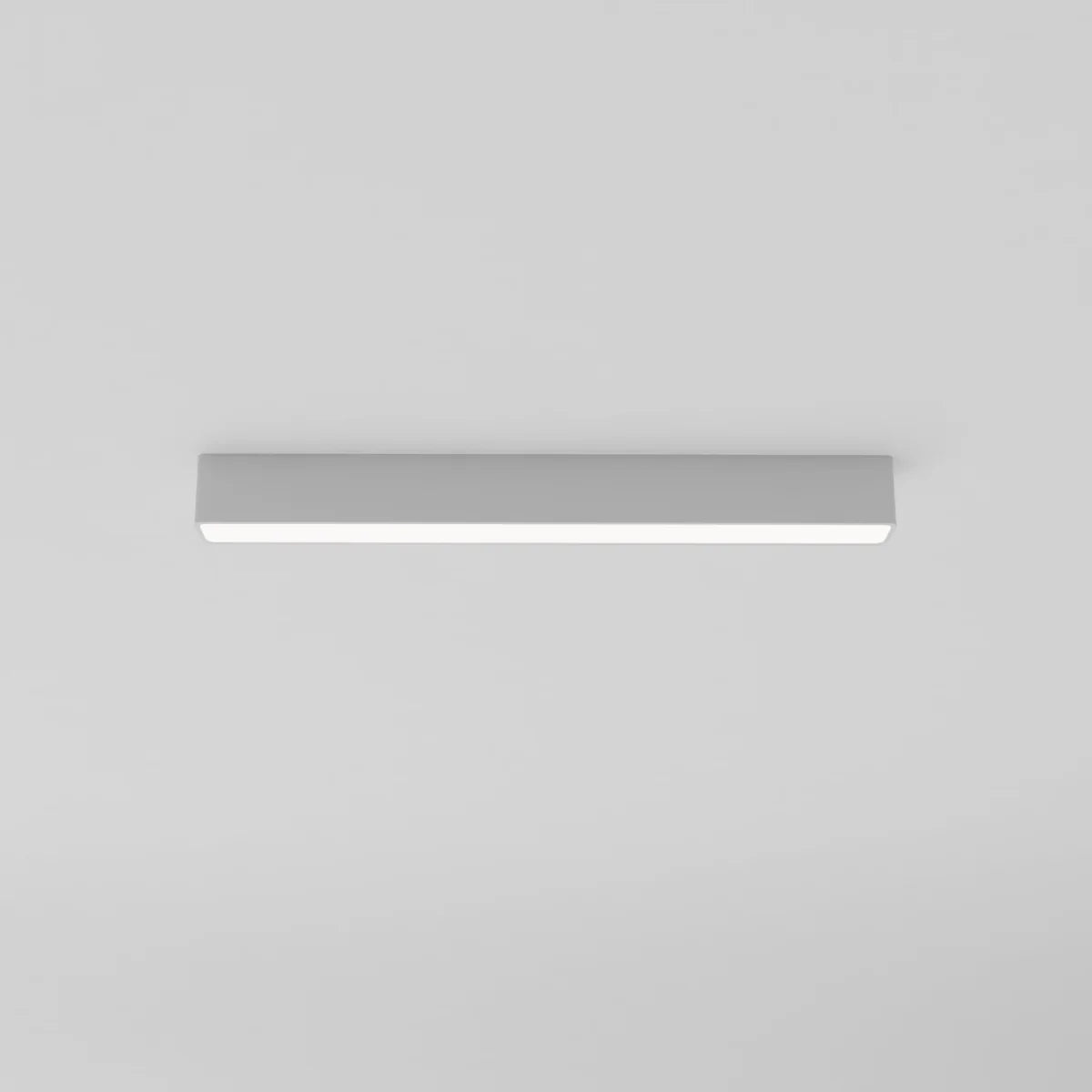

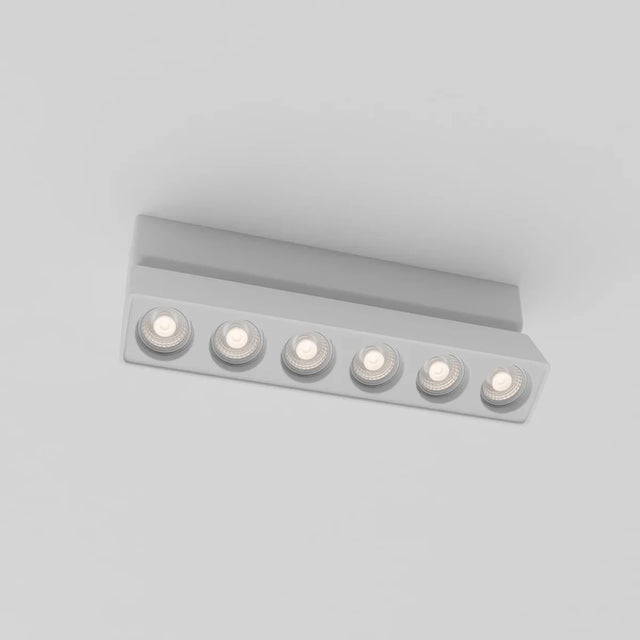

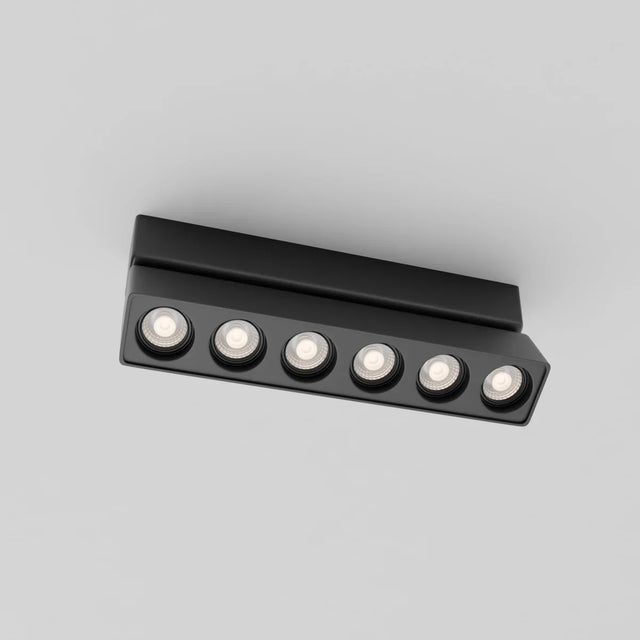

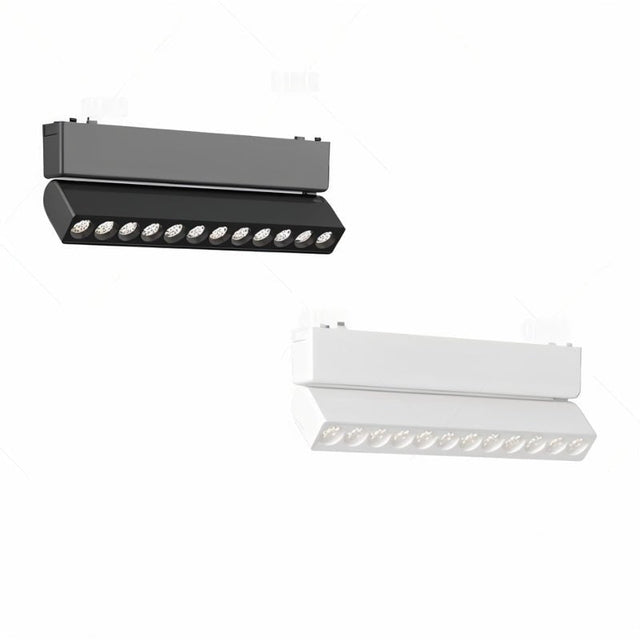

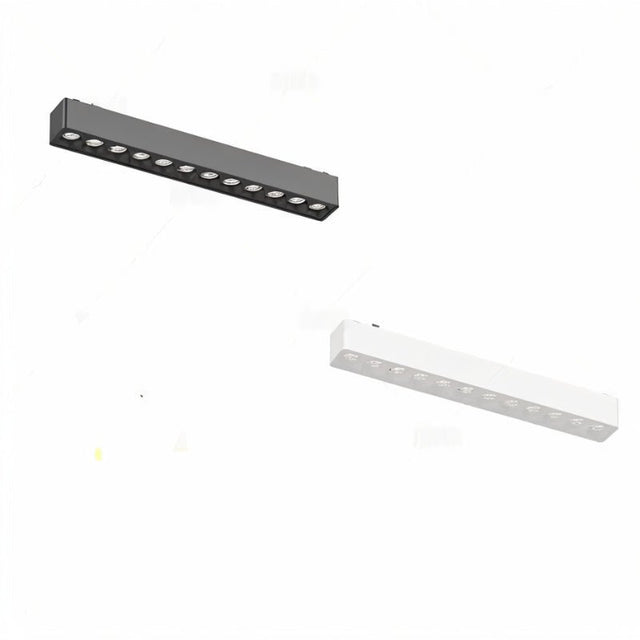

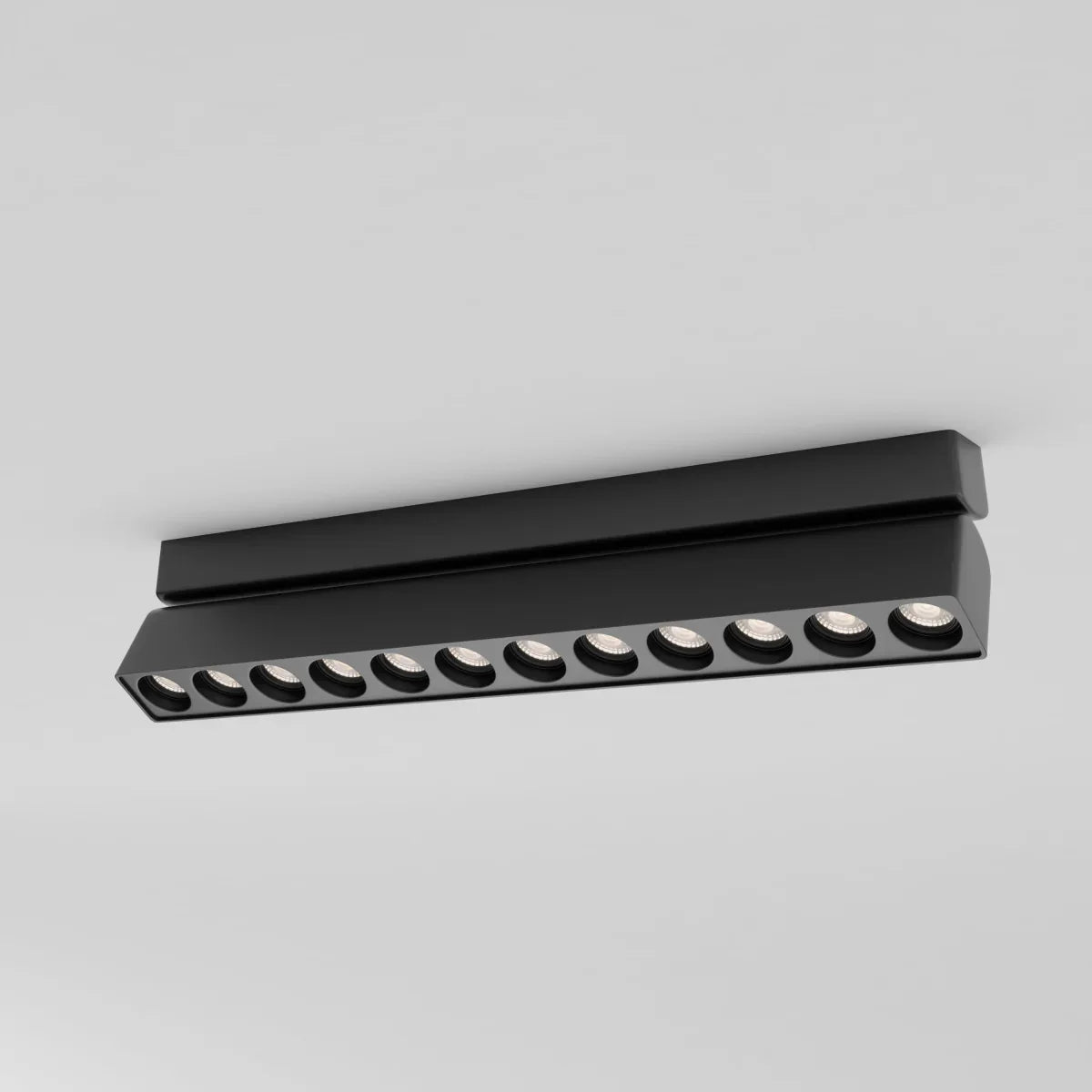

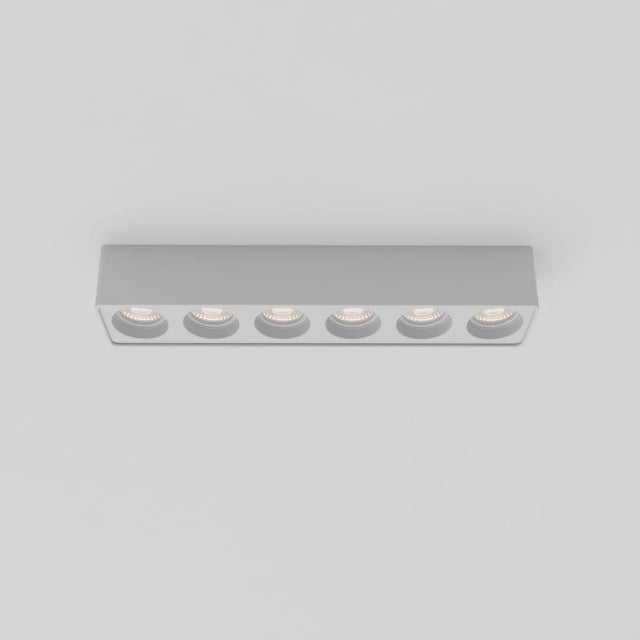

Grille Light A: 4.8"(12cm)

Grille Light A: 9.1"(23cm)

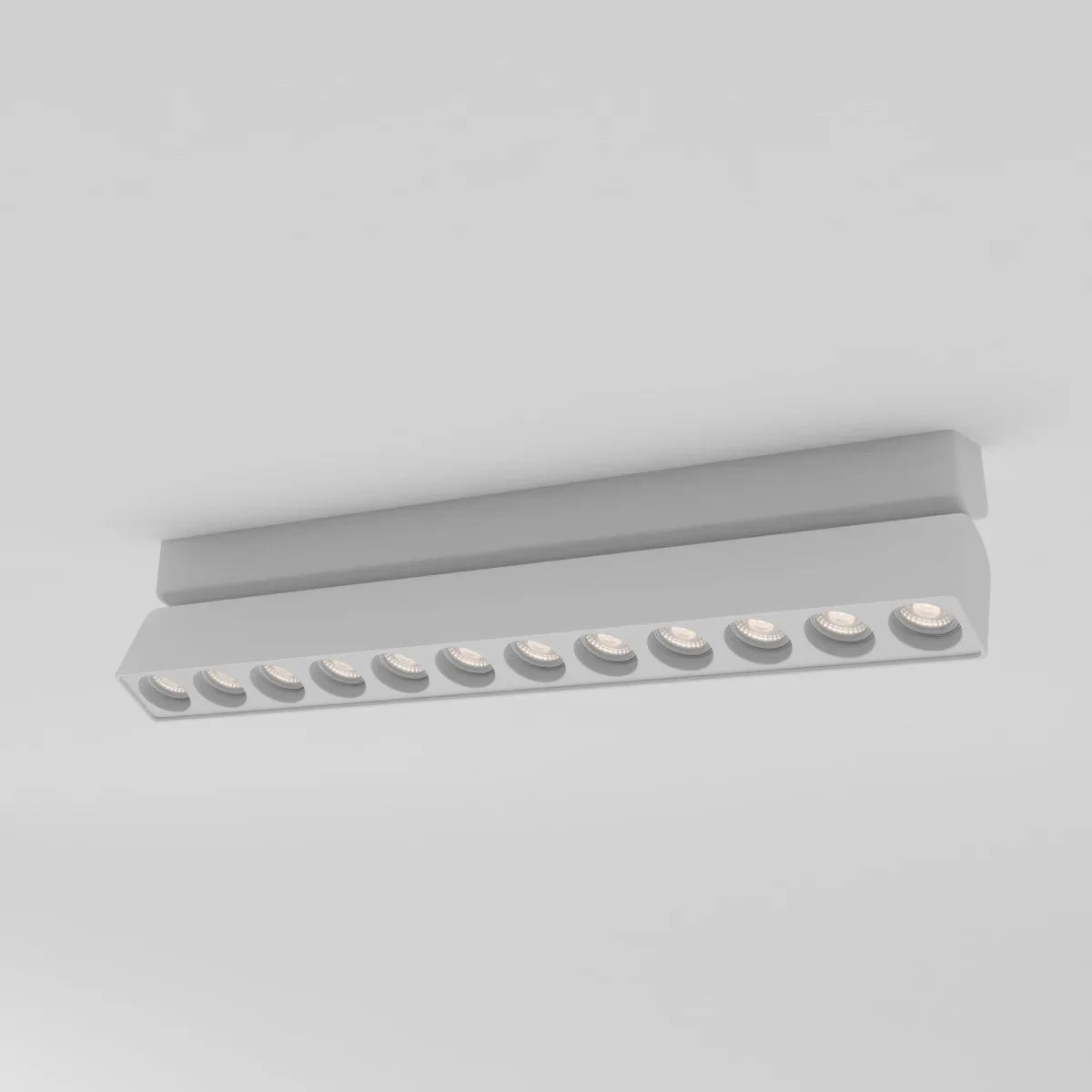

Grille Light B: 4.8"(12cm)

Grille Light B: 9.1"(23cm)

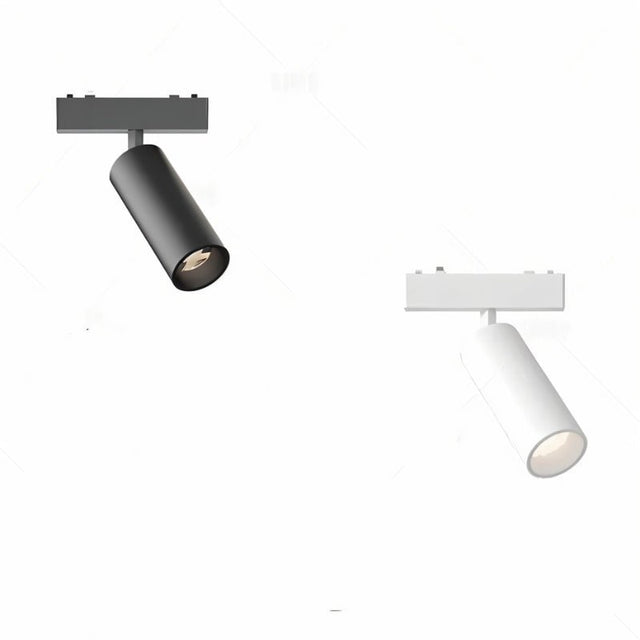

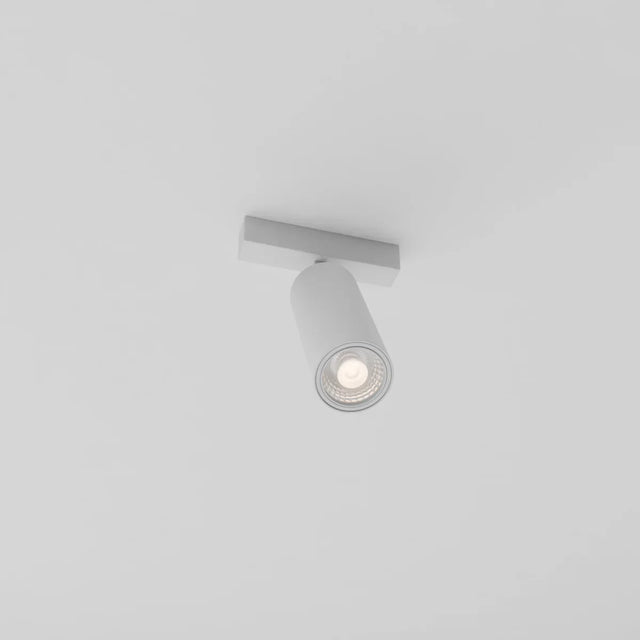

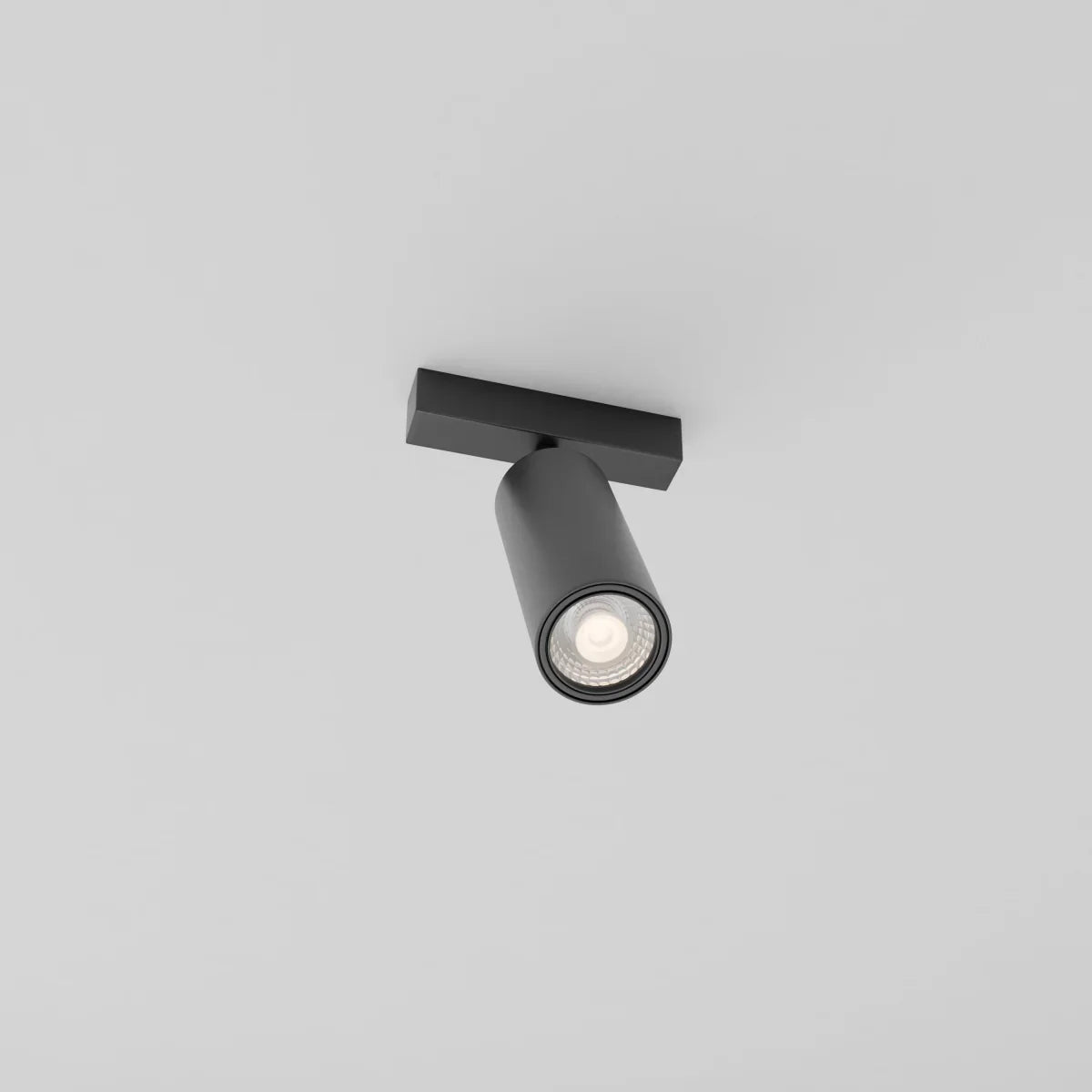

Spotlight: 1.7"(4cm) x 4.4"(11cm)

Spotlight: 2.2"(5.5cm) x 5.4"(14cm)

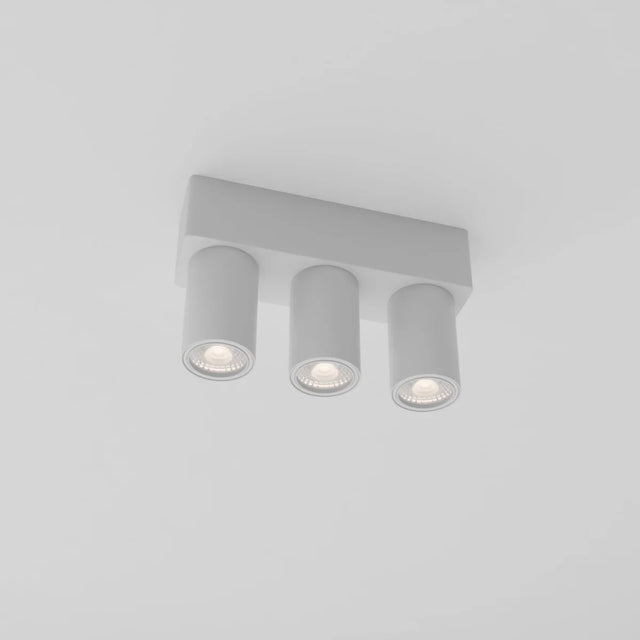

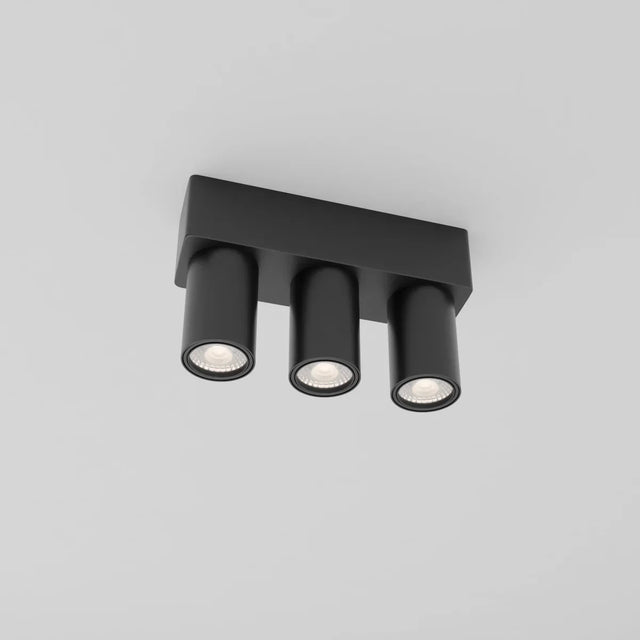

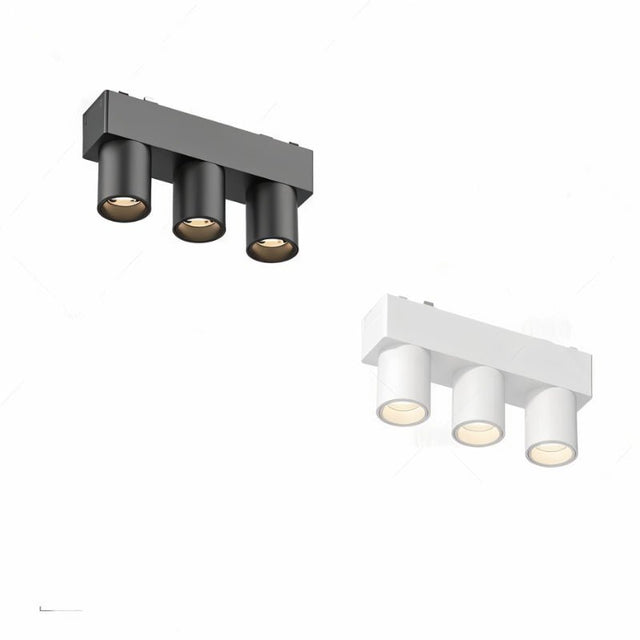

Three-Spotlight: 4.8"(12cm)

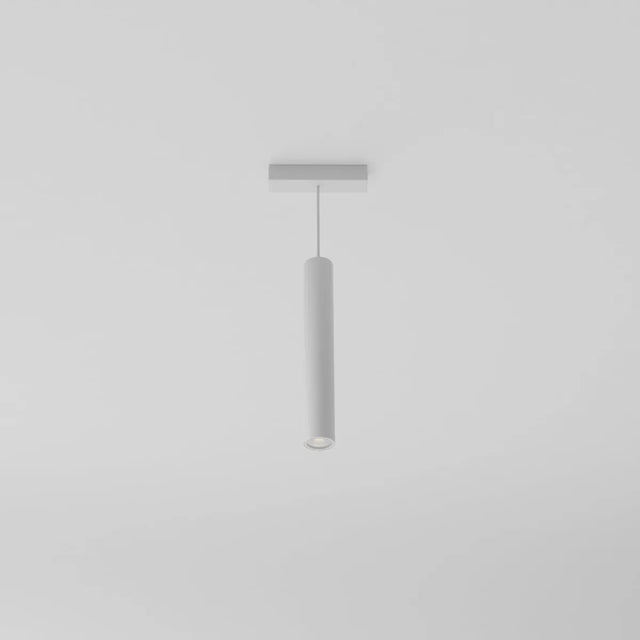

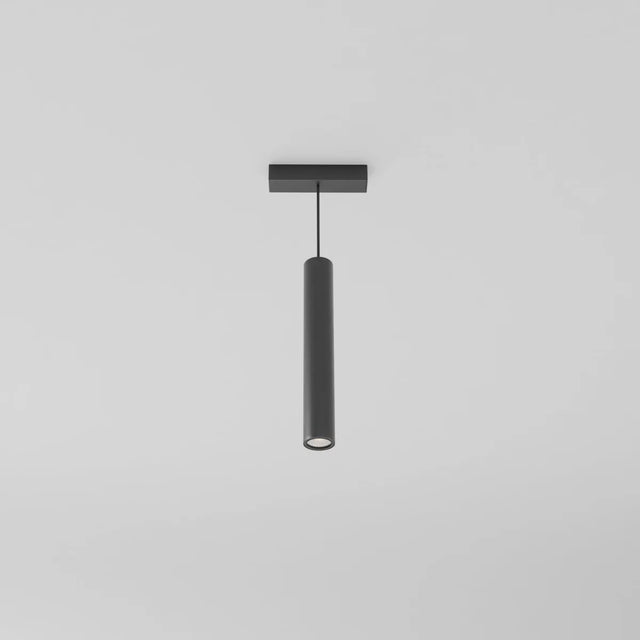

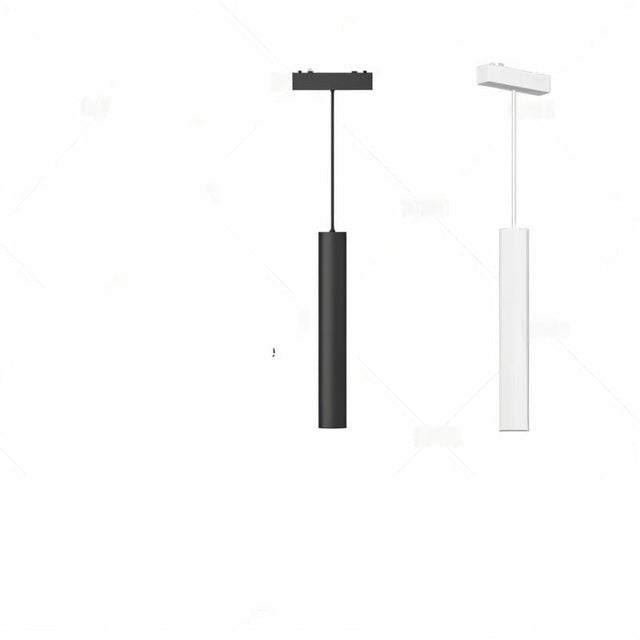

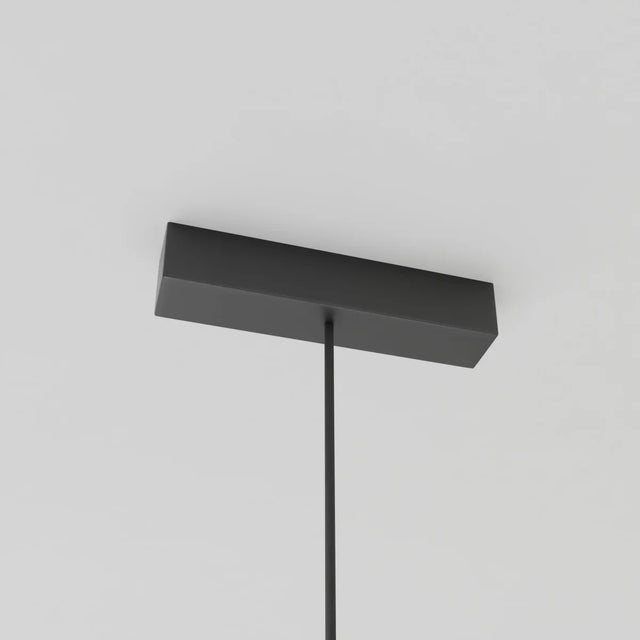

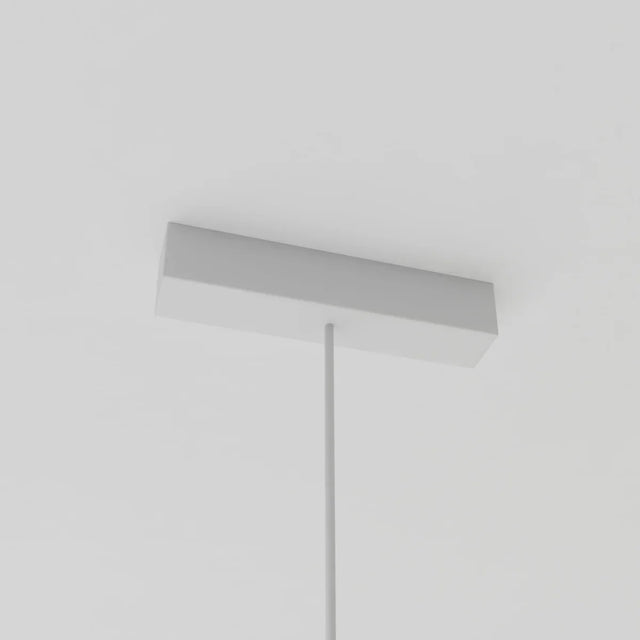

Pendant Light A: 1.2"(3cm) x 11.8"(30cm)

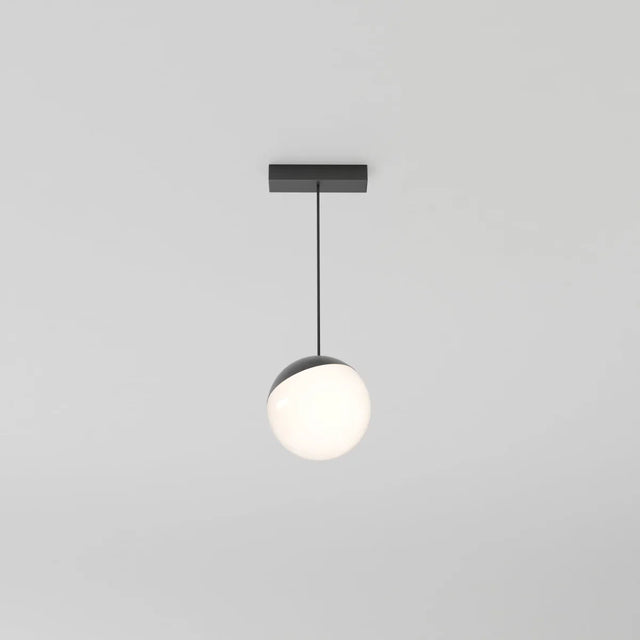

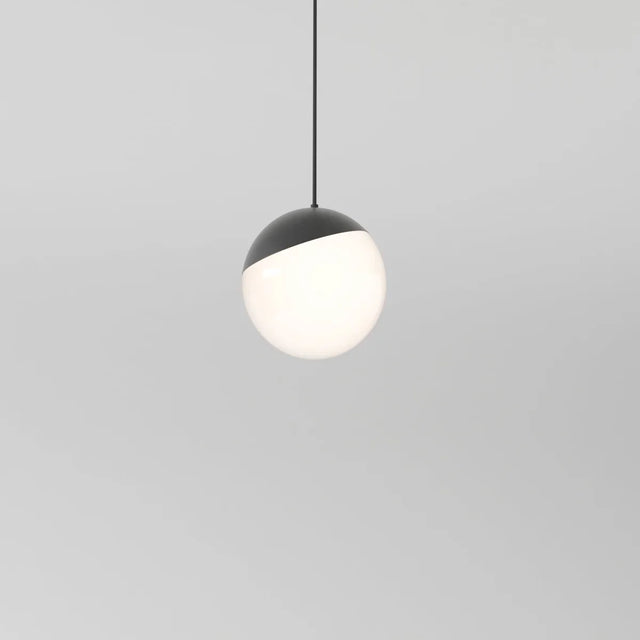

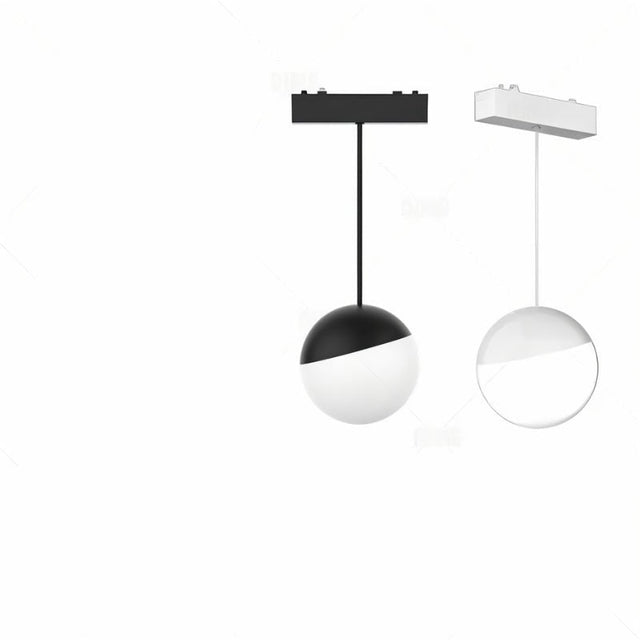

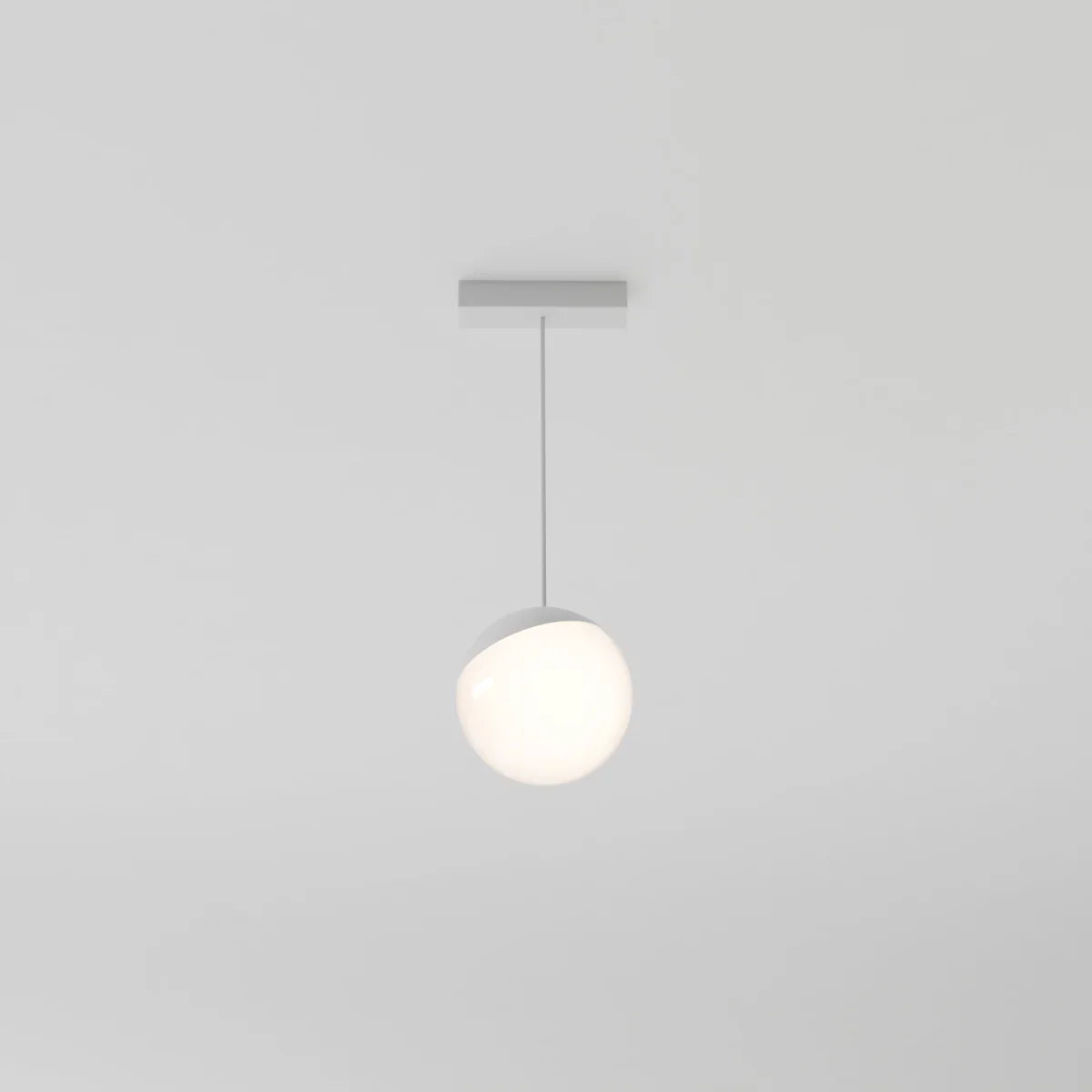

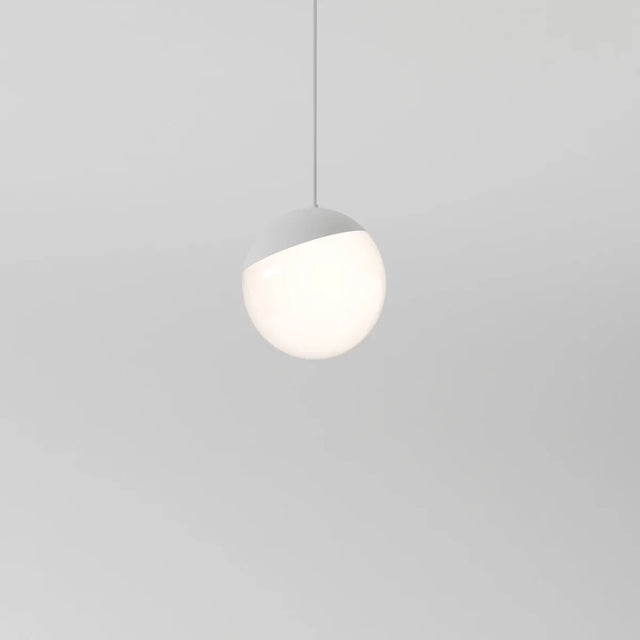

Pendant Light B: 3.9"(10cm) x 3.9"(10cm)

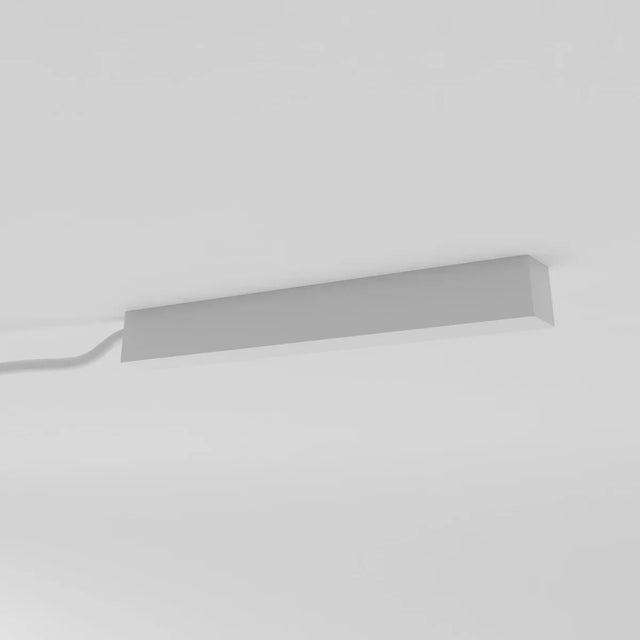

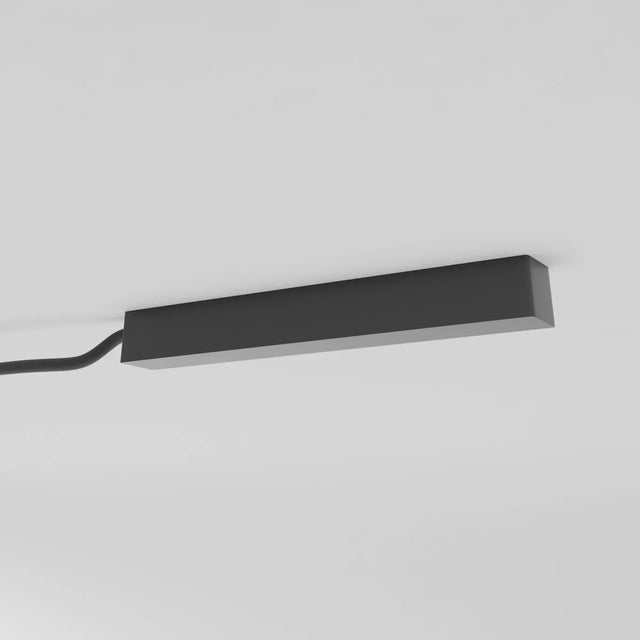

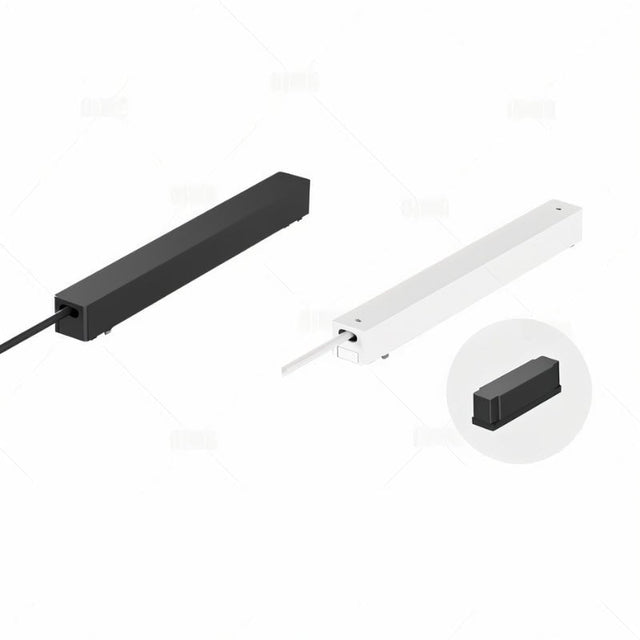

Power Supply: 8.3"(21cm) x 1"(2.5cm) x 0.9"(2cm)

Power Supply: 9.1"(23cm) x 1"(2.5cm) x 0.9"(2cm)

Wattage (Lumens):

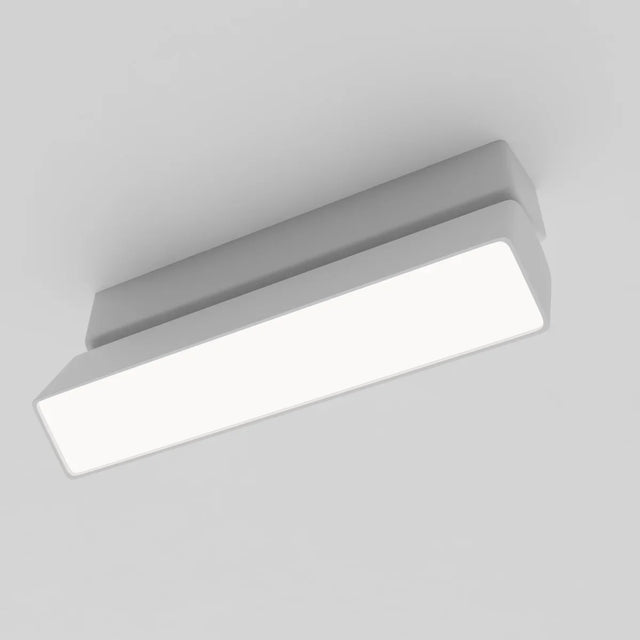

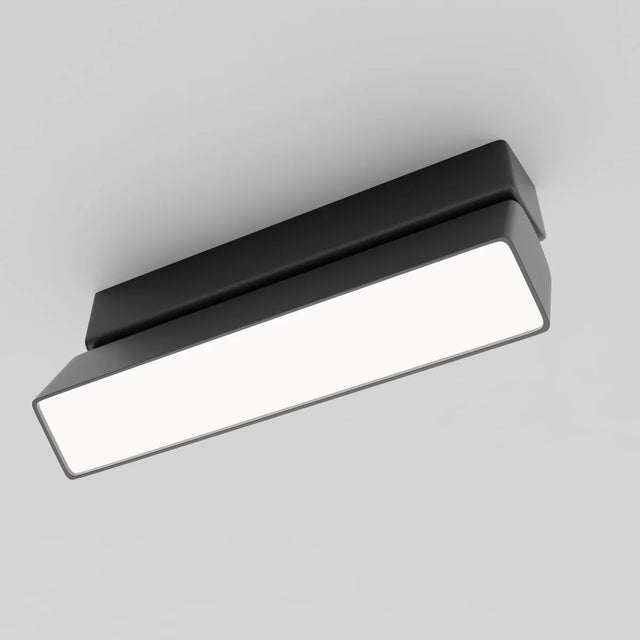

Floodlight A: 10W (1100lm)

Floodlight A: 20W (2200lm)

Floodlight B: 5W (550lm)

Floodlight B: 10W (1100lm)

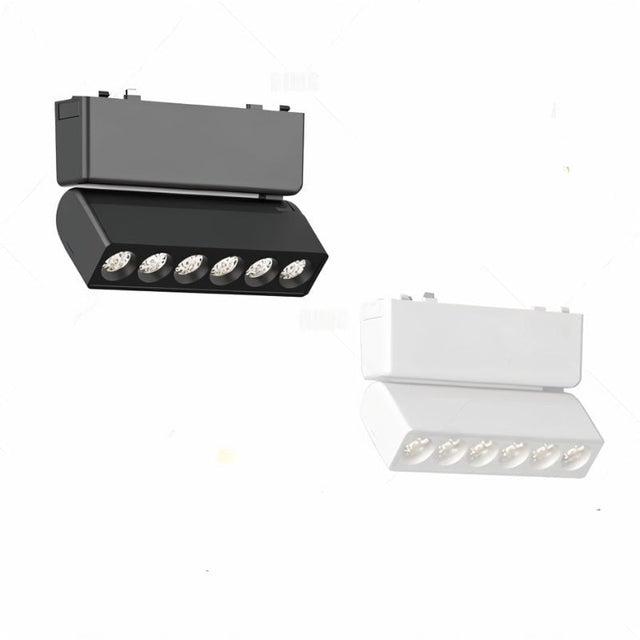

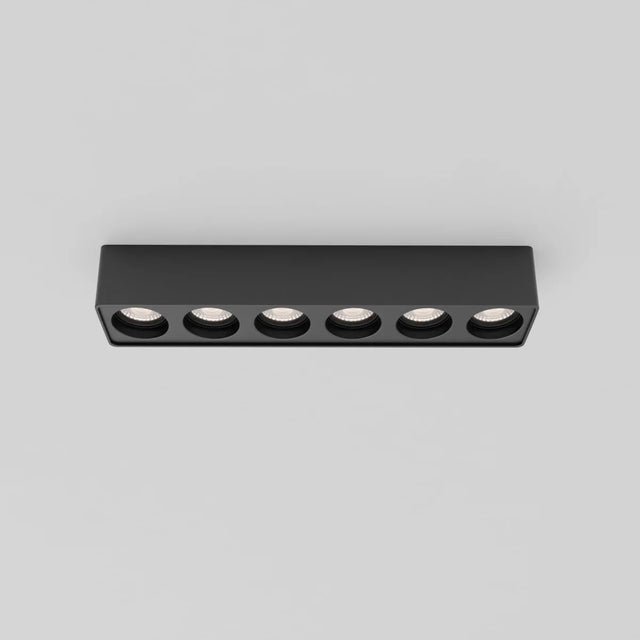

Grille Light A: 6W (660lm)

Grille Light A: 12W (1320lm)

Grille Light B: 6W (660lm)

Grille Light B: 12W (1320lm)

Spotlight: 9W (990lm)

Spotlight: 18W (1980lm)

Three-Spotlight: 6W (660lm)

Pendant Light A: 6W (660lm)

Pendant Light B: 6W (660lm)

Power Supply: 100W (11000lm)

Power Supply: 200W (22000lm)

Weight: 0.4 lbs (0.19 kg), 0.7 lbs (0.3 kg), 0.22 lbs (0.1 kg), 0.4 lbs (0.18 kg), 0.37 lbs (0.17 kg), 0.6 lbs (0.27 kg), 0.4 lbs (0.17 kg), 0.57 lbs (0.26 kg), 0.59 lbs (0.27 kg), 0.88 lbs (0.4 kg), 0.65 lbs (0.29 kg), 0.35 lbs (0.16 kg), 1.1 lbs (0.5 kg)

Material: Aluminum

Finish: Black, White

Light Source: Integrated LED

Bulb Included: Yes

Dimmable: Yes (Dimmer Switch)

Voltage: 90-260VAC

Installation Type: Hardwired

Sloped Ceiling Compatible?: Yes

Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, ROHS, SAA, and VDE

Installation Guide
Overview
  • Configuration Options: The magnetic track system supports four installation methods: Plaster-in (trimless), Embedded (recessed), Surface-mounted, and Suspended (hanging). Select the approach that best suits your ceiling structure and design vision.
  • Power Supply: Connects to a ceiling or wall junction box through an integrated power feed. Some configurations may use a remote or surface-mounted driver box.
  • Fixture Attachment: Light modules lock magnetically into the track channel and can be repositioned or swapped at any time without tools.
  • Ceiling Compatibility: Compatible with both flat and sloped ceilings.
  • Dimming: Many light modules support dimming. Always confirm compatibility with your power driver and wall dimmer before installation.
What You Will Need
  • Drill with assorted bits
  • Screwdriver
  • Non-contact voltage tester
  • Wire stripper
  • Wire connectors
  • Mounting anchors and screws
  • Tape measure and pencil
  • Level
  • Optional: drywall saw (for embedded installations)
  • Optional: suspension cables and ceiling toggles (for hanging configurations)
Setup Instructions

Step 1: Disconnect the Power

Turn off the electricity at your breaker panel. Confirm the circuit is dead with a voltage tester at the junction box before proceeding.

Step 2: Choose Your Mounting Method and Prepare the Surface

  • Plaster-in (Trimless): Cut and frame the ceiling to embed the track channel flush with the drywall. After installation, apply joint compound around the edges, sand smooth, and paint to create a seamless finish.
  • Embedded (Recessed): Cut a slot in the ceiling that fits the track body. Slide the channel into the opening and screw it into the joists or framing through the pre-drilled mounting holes.
  • Surface-Mounted: Position the track directly on the ceiling surface and anchor it with screws through the pre-drilled holes.
  • Hanging (Suspended): Mark and measure suspension points on the ceiling. Install ceiling toggles or anchor bolts, then attach hanging wires to the track body. Adjust to the desired drop height before locking everything down.

Step 3: Wire the Power Feed

At the power feed end of the track, connect the ceiling wires to the fixture wires:

  • Black (hot) to black
  • White (neutral) to white
  • Green or bare copper (ground) to ground

Cap each connection with a wire connector. Tuck the wires into the junction box and close the power feed cover.

Step 4: Join Additional Track Segments (if applicable)

For layouts that include corners or extended runs, connect track segments using magnetic or mechanical connectors. Ensure electrical continuity by aligning the internal copper conductors.

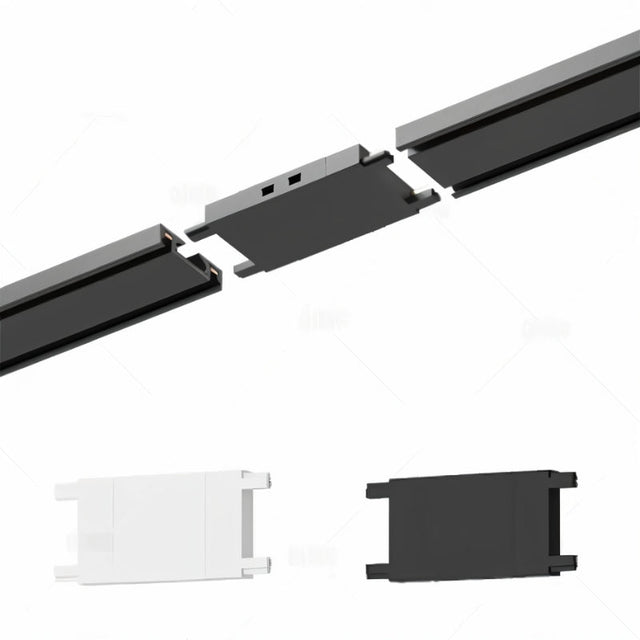

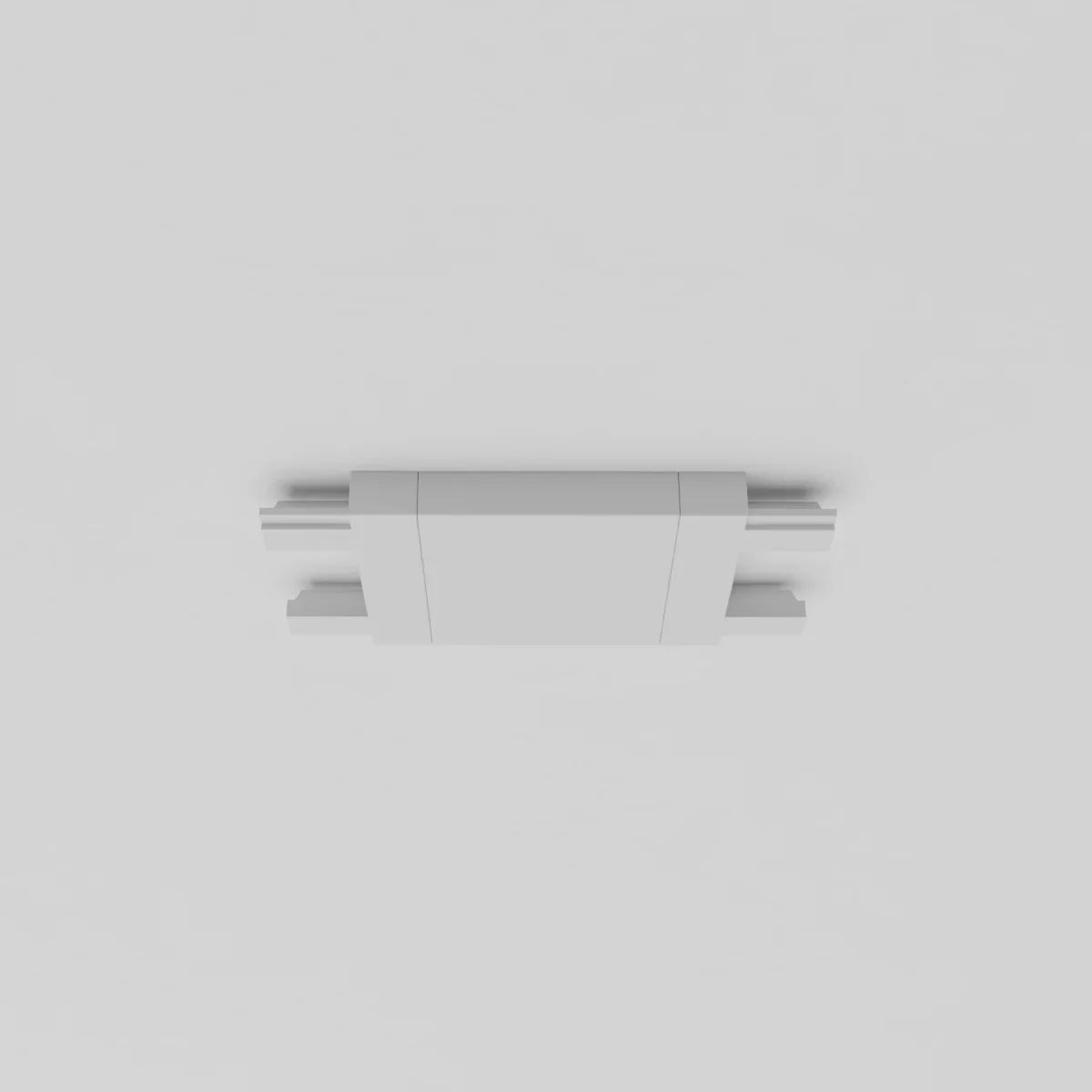

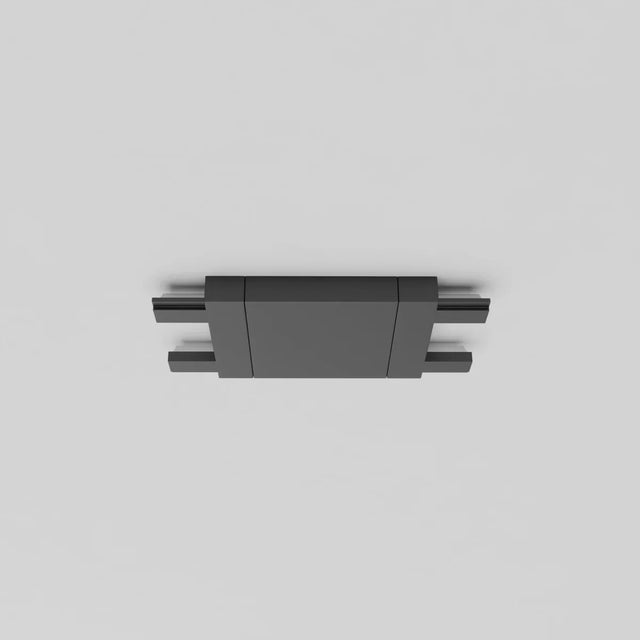

  • I-Connector: Joins two straight track sections in a straight line.

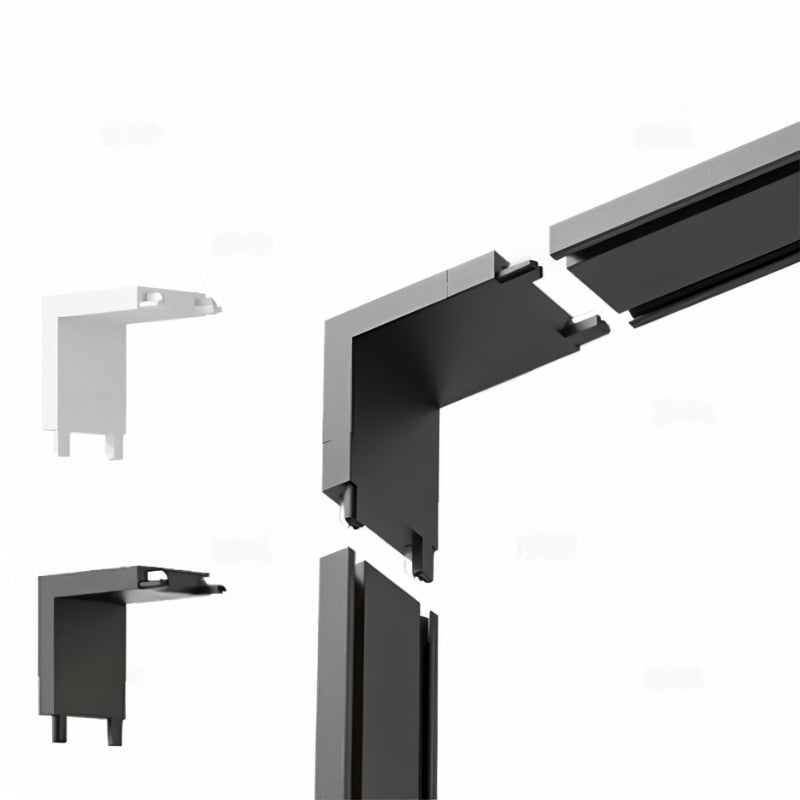

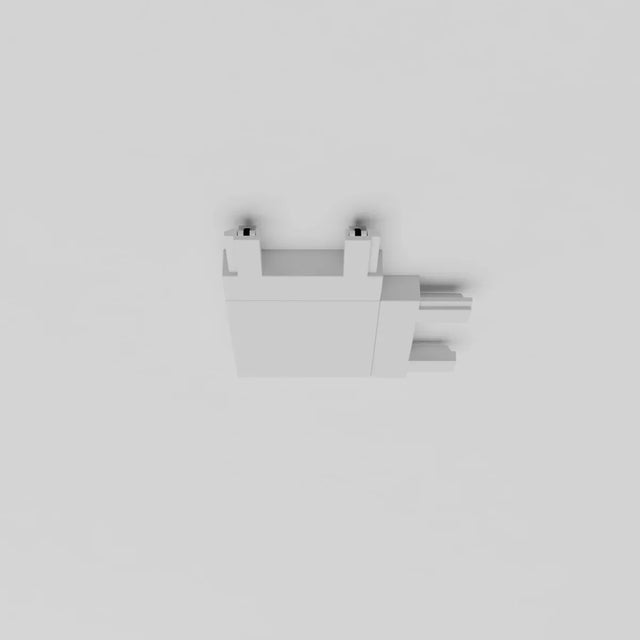

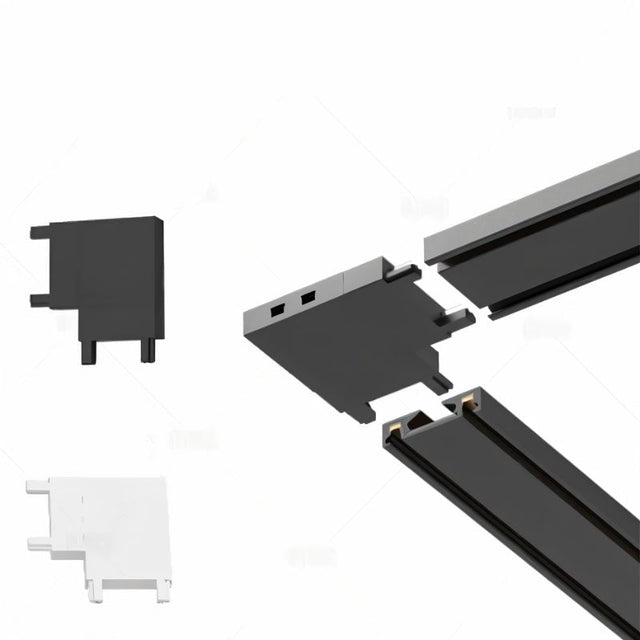

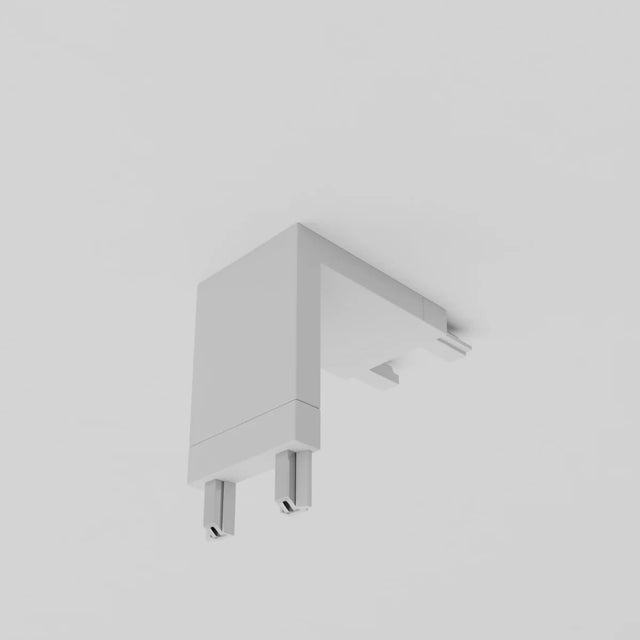

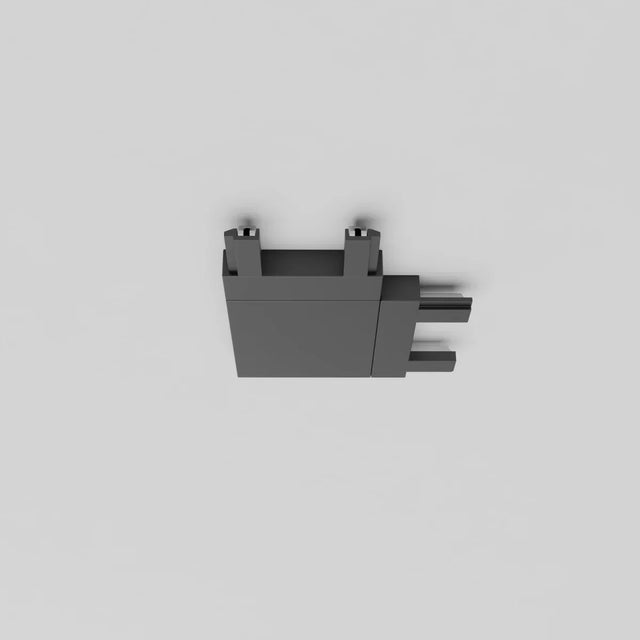

  • L-Connector (Ceiling to Ceiling): Creates a 90-degree turn between ceiling-mounted tracks.
  • L-Connector (Ceiling to Wall): Transitions from a ceiling-mounted section to a wall-mounted section.

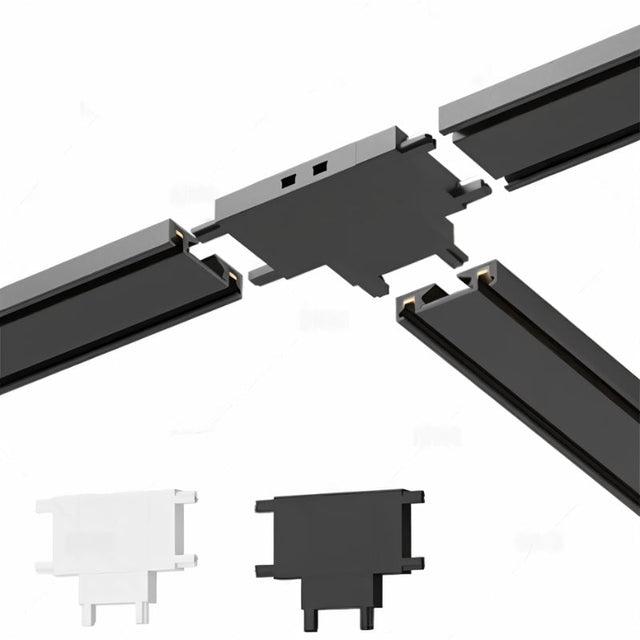

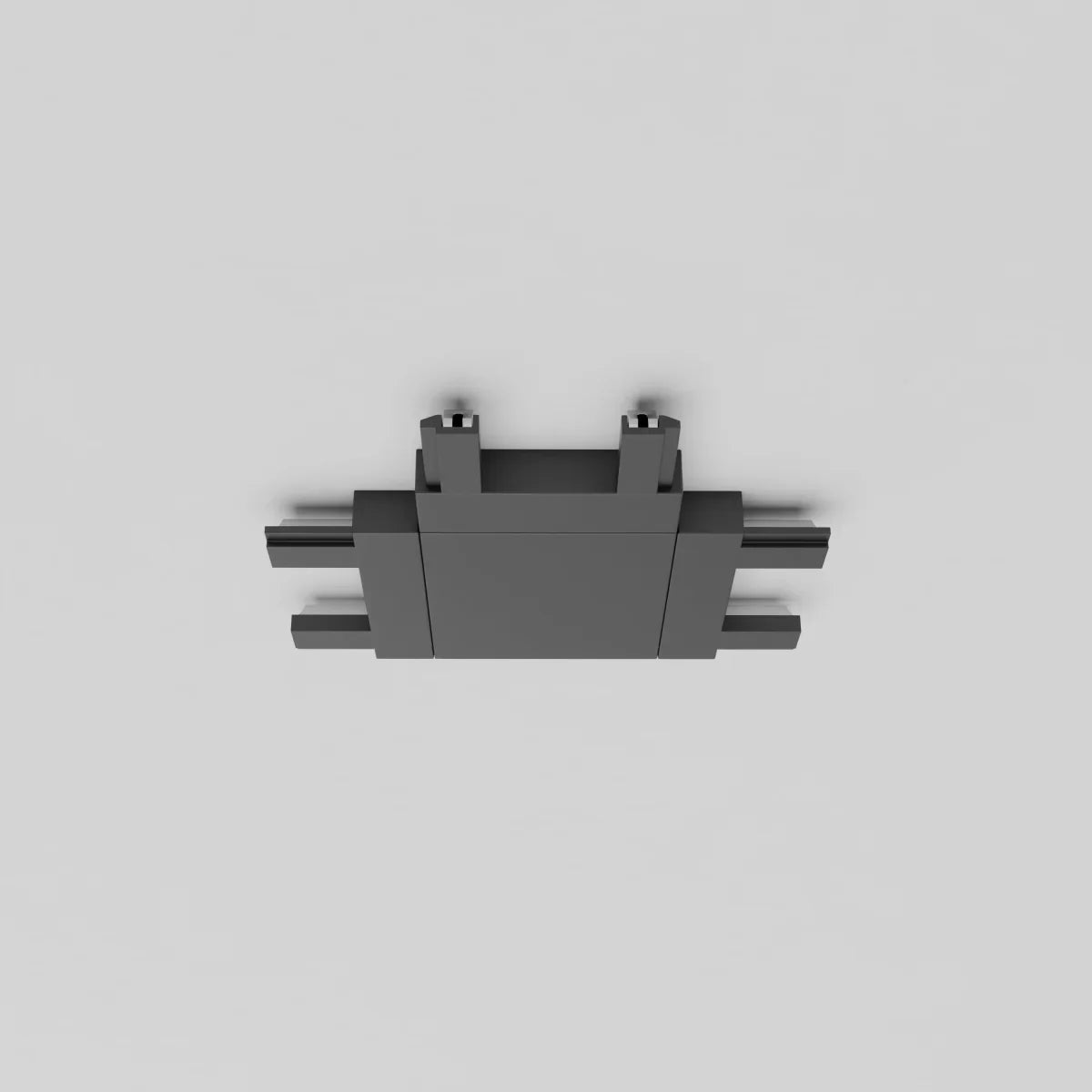

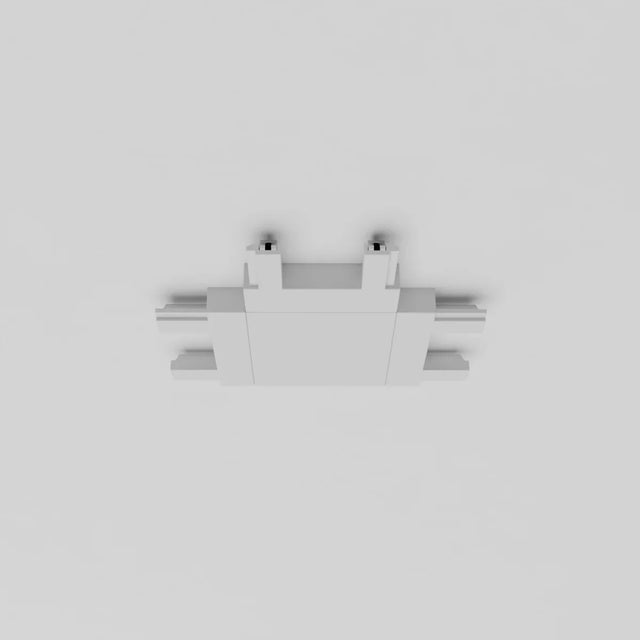

  • T-Connector: Enables a three-way branch for more complex layouts.

Step 5: Attach the Light Modules

Once the track is powered, snap the magnetic light modules into the channel. The magnets provide both a mechanical hold and an electrical connection. Modules can be added, removed, or repositioned at any time.

Step 6: Restore Power and Verify

Turn the breaker back on. Use the wall switch or connected dimmer to activate the system. Confirm that every module illuminates properly and that dimming or directional adjustment functions work as expected.

Helpful Reminders
  • Use only compatible magnetic fixtures and drivers as specified in your product guide.
  • Trimless and embedded installations are best performed during construction or remodeling.
  • For suspended configurations, verify the weight capacity of ceiling anchors and cables.
  • Avoid overtightening screws near trimless or recessed edges to preserve a flush finish.
  • For complex multi-zone layouts, consult a licensed electrician or lighting designer.
Planning a Custom Track Layout?

We are happy to help with layout design, power supply pairing, or fixture compatibility.
Email: care@leveldecor.co

Make it your own

Every order is eligible for customization by our skilled in-house team.

Frequently Requested Modifications
  • Adjusted hanging or suspension length
  • Custom material finish or paint color
  • Modified light emission color or temperature
  • Dimmer integration
  • Scaled dimensions (larger or smaller)
  • Complete fixture redesign based on your specifications

Shipping Time & Returns

We are thrilled to offer shipping worldwide to over 120 countries, ensuring that wherever you are, we can deliver to your doorstep.

Standard Shipping:
Enjoy complimentary standard shipping on all orders! Expect delivery within 15-21 business days from the date of your order.

Priority Processing:
Need your items sooner? Opt for our Priority Processing option at checkout. With Priority Processing, we'll fast-track the manufacturing process of your lighting fixture. Your order will skip the line, resulting in shipping times of approximately 10-20 business days from the date of your order to delivery at your doorstep.

Return Policy:

We want you to love your purchase, which is why we offer a hassle-free return policy. If for any reason you're not completely satisfied with your order, you have 14 days from the date of receipt to initiate a return.

  • Please note that a 20% restocking fee will be applied to any merchandise returned or exchanged that is not due to manufacturer defects or damage.
  • To request a refund or initiate a return, simply email our returns team at care@leveldecor.co. For more details, please review our complete Return Policy.
Craft Your Illumination Vision

Elevate your architectural lighting with the Hermanville Track Light — an exquisite modular collection designed for discerning homeowners who demand complete creative control. From sophisticated galleries to executive kitchens, this magnetic system empowers you to orchestrate every lighting element with precision.

Begin with your selection of rail finish and length, then incorporate precision joiners to achieve your desired configuration. Curate from our refined collection of luminaire modules — featuring focused spots, architectural floods, linear grilles, and statement pendants — each engineered for seamless magnetic integration. Complete your composition with the appropriate driver system and intelligent automation controls for effortless ambiance management.

EXCEPTIONAL ATTRIBUTES:

  • Bespoke configuration capability – architect your unique lighting narrative
  • Aircraft-grade aluminum fabrication – refined in midnight black or arctic white
  • Ultra-slim magnetic rail – minimalist profile with effortless mounting
  • Infinite expandability – adapt and enhance over time
  • Comprehensive fixture library – for accent, task, and atmospheric illumination
  • Dynamic color temperature – transition from warm 3000K to crisp 6000K via Tuya Zigbee
  • Home automation integration – seamless compatibility with Alexa, Google Assistant, Apple HomeKit, and Smart Life
  • Extended operational life – 50,000 hours of consistent LED brilliance

CONFIGURATION EXCELLENCE:

  • Choose Rail Finish & Length – Foundation elements in sophisticated black or pristine white finishes.
  • Specify Connection Hardware – Engineer L-configurations, T-junctions, or linear arrangements.
  • Select Lighting Modules – Curate fixtures that complement your aesthetic vision and functional requirements.
  • Integrate Power Management – Choose coordinating drivers with appropriate capacity for your installation.
  • Incorporate Smart Technology – Enable sophisticated control through voice, mobile, or automated systems.

DIMENSIONS:

  • Magnetic Track Rail - 19.7" / 50cm
  • Magnetic Track Rail - 39.4" / 100cm
  • Floodlight A - 12.4" / 31.5cm / 10W
  • Floodlight A - 24.2" / 61.5cm / 20W
  • Floodlight B - 4.8" / 12.2cm / 5W
  • Floodlight B - 9.1" / 23cm / 10W
  • Grille Light A - 4.8" / 12.2cm / 6W
  • Grille Light A - 9.1" / 23cm / 12W
  • Grille Light B - 4.8" / 12.2cm / 6W
  • Grille Light B - 9.1" / 23cm / 12W
  • Spotlight - 1.7" x 4.4" / 4.4cm x 11.2cm / 9W
  • Spotlight - 2.2" x 5.4" / 5.5cm x 13.8cm / 18W
  • Three-Spotlight - 4.8" / 12.2cm / 6W
  • Pendant Light A - 1.2" x 11.8" / 3cm x 30cm / 6W
  • Pendant Light B - 3.9" x 3.9" / 10cm x 10cm / 6W
  • Power Supply - 8.3" x 1" x 0.9" / 21cm x 2.6cm x 2.4cm / 100W
  • Power Supply - 9.1" x 1" x 0.9" / 23cm x 2.6cm x 2.4cm / 200W

Innovative engineering. Intelligent design.

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Refined Minimalism"}]}]}

Refined Minimalism

Ultra-thin profiles and concealed hardware deliver an uncompromising modern aesthetic that elevates any architectural space.
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Adaptive Intelligence"}]}]}

Adaptive Intelligence

Reconfigure lighting arrangements instantly as your needs evolve—ideal for dynamic residential, gallery, or commercial environments.
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Precision Engineering"}]}]}

Precision Engineering

Individual component selection ensures you acquire precisely what your vision demands—no excess, no compromise.

Frequently Asked Questions

What defines the Hermanville Track Light system?

The Hermanville represents a sophisticated modular magnetic lighting platform where you architect your own configuration by selecting individual rails, connectors, luminaires, drivers, and intelligent controls. Each element is available separately for complete personalization.

What's the process for creating my custom configuration?

Start by choosing your rail dimensions and finish, then specify connectors to achieve your desired layout geometry. Select your preferred lighting modules, pair with an appropriate power driver, and optionally include smart control technology for advanced functionality.

How straightforward is the installation process?

Exceptionally simple. Individual luminaires attach magnetically to the rail without requiring tools. The rail itself mounts to ceiling or wall surfaces using conventional hardware methods.

Is future system expansion possible?

Certainly. The architecture supports continuous growth and modification. Simply incorporate additional rail segments with appropriate connectors, then magnetically attach new lighting modules as desired.

Which luminaire styles are offered?

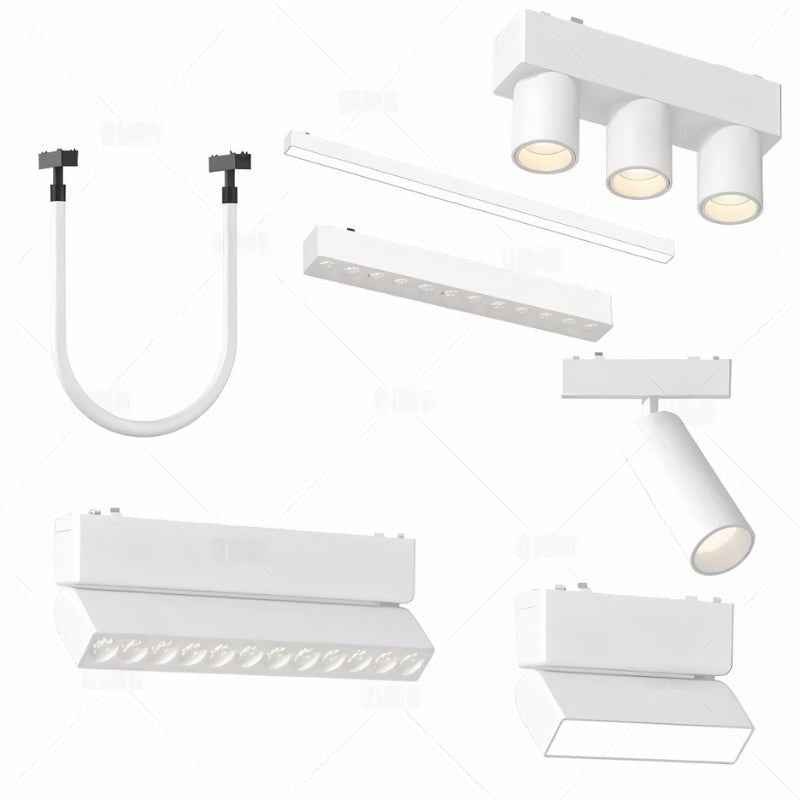

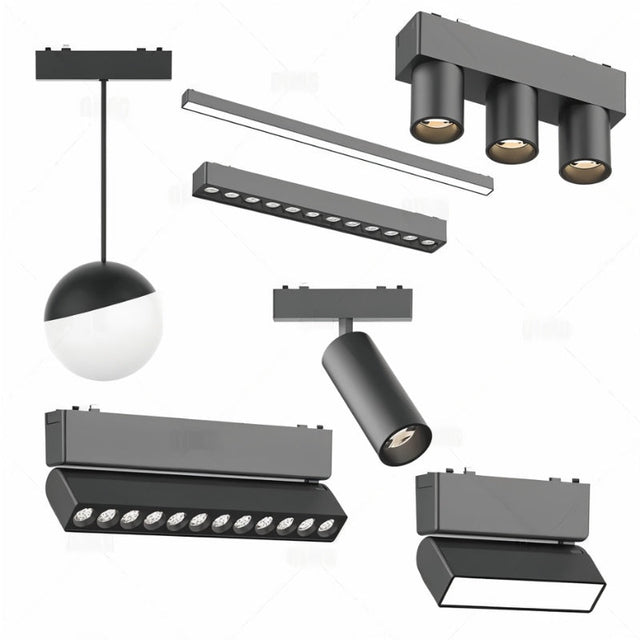

Our collection encompasses focused spotlights, architectural floodlights, linear grille fixtures, and contemporary pendants to accommodate diverse aesthetic preferences and lighting objectives.

Does the system support home automation integration?

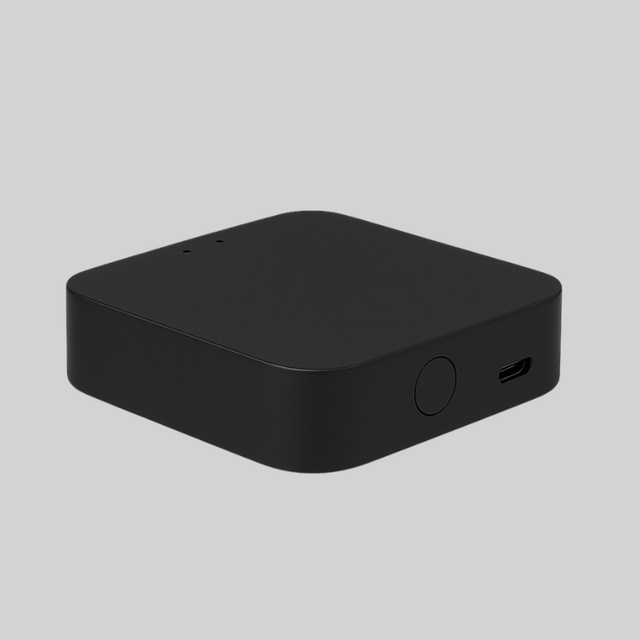

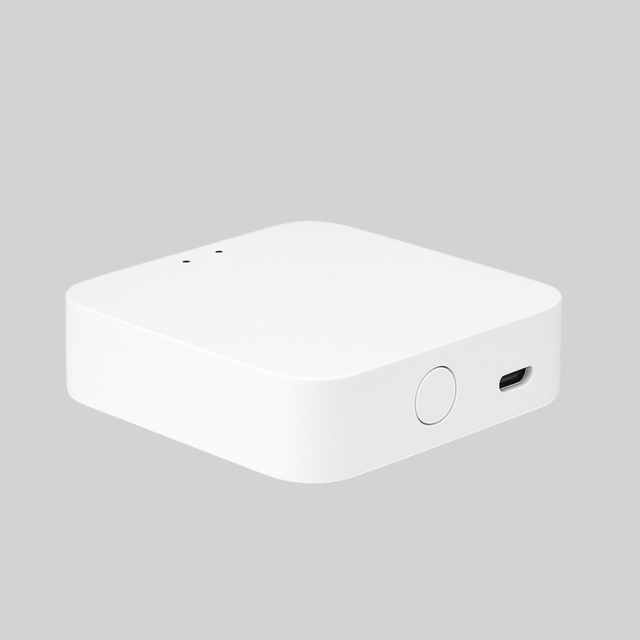

Yes. Optional intelligent control modules enable seamless integration with popular home automation platforms, providing mobile app control and voice command capabilities.

What are the electrical specifications?

The system operates on 90-260VAC LED technology, delivering exceptional energy efficiency with an impressive operational lifespan extending to 50,000 hours.

Can luminaires be repositioned after installation?

Absolutely. All lighting modules can be repositioned anywhere along the magnetic rail system at any time, providing ultimate flexibility for changing requirements.

Which rail finishes are available?

Select between sophisticated matte black and pristine matte white finishes to harmonize with your interior design aesthetic.

Must I purchase all components simultaneously?

Not whatsoever. Begin with essential components and expand your system progressively. Since each element is sold individually, you invest only in what you require, when you require it.
